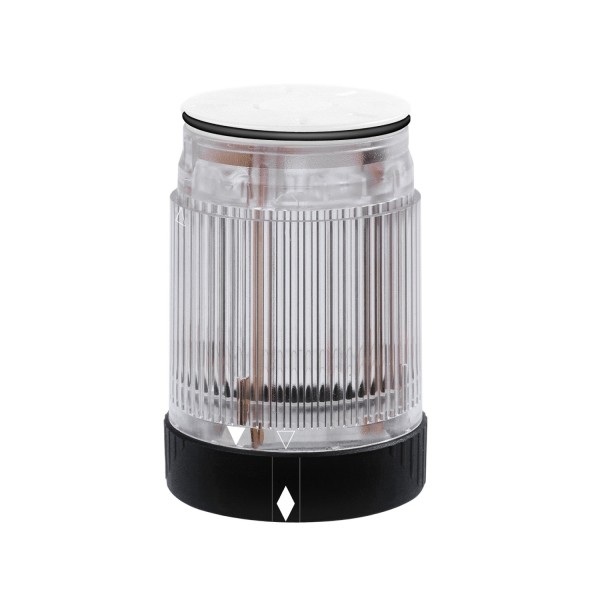

clear strobe / black ring 0.6j 120Vac

Ülevaaded: 0

Tootekood: XVPC6G7

Quick Overview

Saadavus: Ei saa enam tellida

115,66 € (ilma KM-ta)

Details

Main
range of product
Harmony XVP Universal
product or component type
Indicator bank
beacon or indicator bank unit type
Illuminated unit with black clamping ring
signalling type
Flashing
mounting diameter
50 mm
component name
XVPC
material
Polycarbonate and polyamide
light source
Integral flash discharge tube, clear
bulb type
Flash discharge tube
[Us] rated supply voltage
120 V AC
flash energy
0,6 J
Complementary
assembly style
Customer assembly, up to 5 units
connections - terminals
Screw clamp terminals, <= 1 x 1.5 mm² with cable end
marking
CE
[Ui] rated insulation voltage
250 V IEC 60947-1
nominal voltage limit
0.85...1.1 Un IEC 60947-5-1
current consumption
<= 20 mA AC
[Uimp] rated impulse withstand voltage
4 kV IEC 60947-1
flashing frequency
0,6…2 Hz
illuminating intensity
5 cd
service life in hours
1000 h -25…50 °C
CAD overall width
56 mm
CAD overall height
65 mm
CAD overall depth
56 mm
net weight
0,115 kg
Environment
product certifications
CULus
standards
EN/IEC 60947-5-1
protective treatment
TC
ambient air temperature for storage
-40…70 °C
electrical shock protection class
Class I on support tube IEC 61140
Class II on base unit IEC 61140
IP degree of protection
IP65 IEC 60529
Contractual warranty
Garantii
18 months
