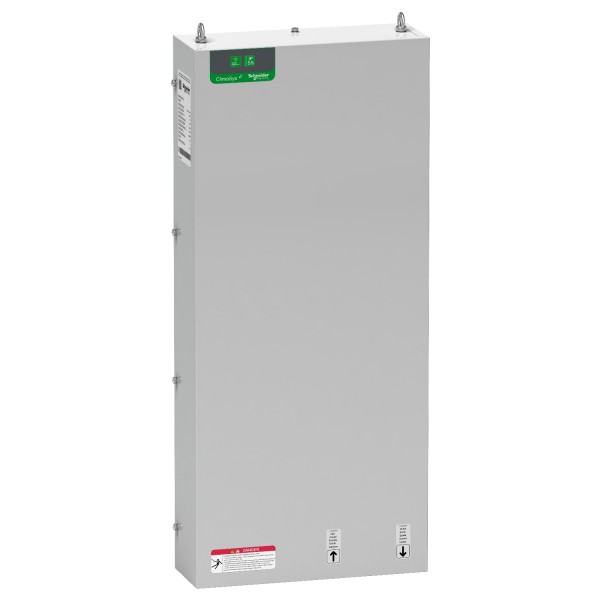

ClimaSys Exchanger air-water 2500W sides of enclosure

Details

Complementary
pressure	5 bar for water
pressure drop	0,3 bar
water flow	Internal circuit 500 l/h
Flow rate	External circuit 860 m3/h
control type	Thermostat
temperature setting range	20…46 °C
ambient air temperature for operation	Outside the enclosure 1…70 °C Inside the enclosure 20…60 °C
controlled fluid	Water
fluid connection type	G 1/2 (female)
input voltage	230 V 50/60 Hz
[In] rated current	0,33 A
power consumption in W	80 W
height	External 901 mm
width	External 398 mm
depth	External 137 mm
net weight	19 kg
Noise level	58 dB EN/ISO 3746
protection type	Thermal protection T 2 A
material	Steel
colour	Grey RAL 7035)

Environment
IP degree of protection	IP55 IEC 60529 on the internal circuit) IP55 IEC 60529 on the external circuit)
product certifications	CE
directives	2004/108/EC - electromagnetic compatibility 2006/42/EC - machinery 2006/95/EC - low voltage directive
standards	EN 60204-1 EN 60335-1 EN/ISO 12100 EN 60335-2-40

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
