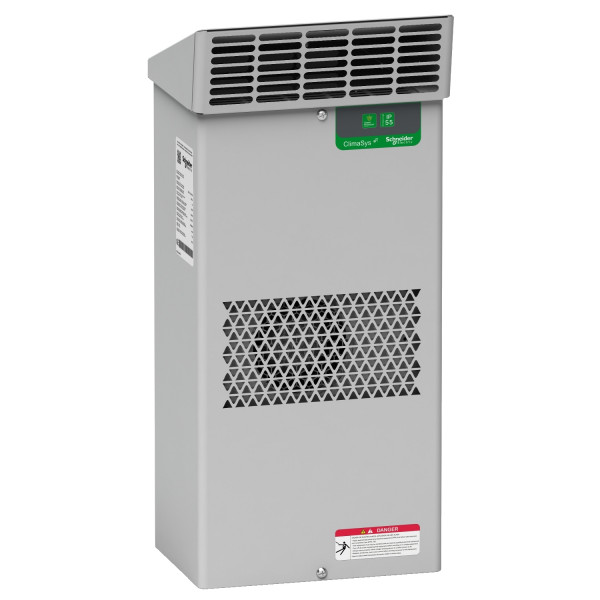

ClimaSys outdoor cooling unit side of enclosure

Details

Complementary
height	606 mm
width	316 mm
depth	212 mm
[In] rated current	2,1 A
inrush current	8,1 A
power consumption in W	400 W 50/60 Hz, L35-L35 470 W 50/60 Hz, L35-L50
energy efficiency ratio	1,6
control type	Mechanical
temperature setting range	20…55 °C
ambient air temperature for operation	Inside the enclosure 20…46 °C Maximum 55 °C Outside the enclosure -20…55 °C
Noise level	65 dB EN/ISO 3746
pressure	25 bar
Flow rate	Internal circuit 330 m3/h 50/60 Hz External circuit 570 m3/h 50/60 Hz
net weight	21 kg
cooling gas type	R134a 0,23 kg)
Type of filter	Optional external circuit filter
protection type	Thermal protection T 6 A Short-circuit protection (magnetic)
material	Steel
colour	Grey RAL 7035)

Environment
product certifications	CE
directives	2006/95/EC - low voltage directive 2006/42/EC - machinery 2004/108/EC - electromagnetic compatibility
standards	EN 378 EN 60335-1 EN/ISO 12100 EN 60204-1 EN 60335-2-40
IP degree of protection	IP34 IEC 60529 on the internal circuit) IP55 IEC 60529 on the external circuit)

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
