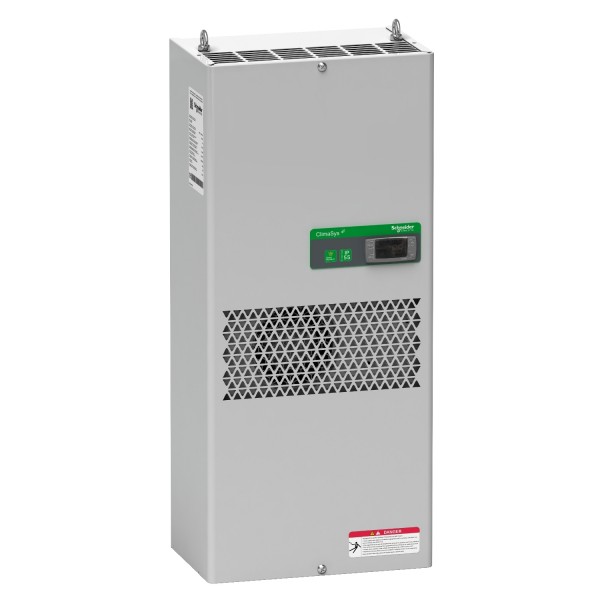

ClimaSys standard cooling unit side of enclosure

Details

Complementary
height	783 mm
width	348 mm
depth	215 mm
[In] rated current	2,6 A
inrush current	10,8 A
power consumption in W	440 W 50/60 Hz, L35-L35 490 W 50/60 Hz, L35-L50
energy efficiency ratio	1,9
control type	Electronic controller
temperature setting range	20…55 °C 50 Hz 20…50 °C 60 Hz
ambient air temperature for operation	Inside the enclosure 20…46 °C Maximum 55 °C Outside the enclosure 20…55 °C 50 Hz Outside the enclosure 20…50 °C 60 Hz
Noise level	65 dB EN/ISO 3746
pressure	25 bar
Flow rate	Internal circuit 330 m3/h 50/60 Hz External circuit 570 m3/h 50/60 Hz
net weight	27 kg
cooling gas type	R134a 0,23 kg)
Type of filter	Optional external circuit filter
protection type	Thermal protection T 6 A Short-circuit protection (magnetic)
material	Steel
colour	Grey RAL 7035)

Environment
product certifications	CE
directives	2006/42/EC - machinery 2006/95/EC - low voltage directive 2004/108/EC - electromagnetic compatibility
standards	EN 60204-1 EN/ISO 12100 EN 60335-2-40 EN 378 EN 60335-1
IP degree of protection	IP34 IEC 60529 on the internal circuit) IP55 IEC 60529 on the external circuit)

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
