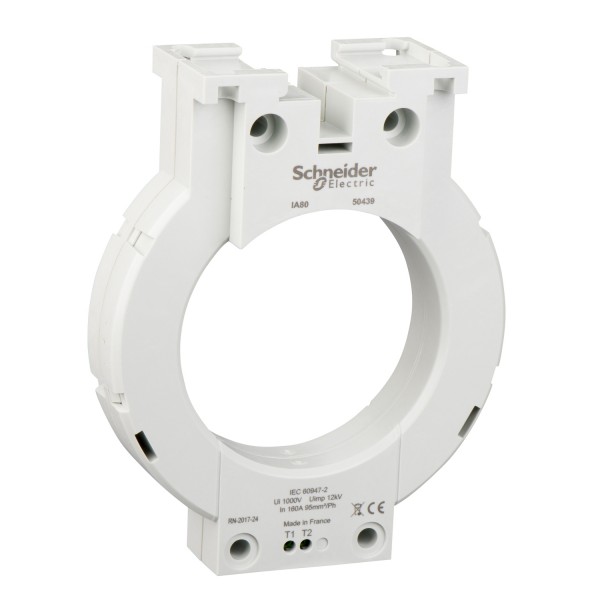

closed toroid A type, for Vigirex and Vigilhom, IA80, inner diameter 80 mm, rated current 160 A

Ülevaaded: 0

Tootekood: 50439

Quick Overview

Saadavus: Tellimisel

133,76 € (ilma KM-ta)

Details

Main
range
Vigirex
device short name
IA80
product or component type
Earth leakage current sensor
device application
Equipment monitoring and control
range compatibility
Vigirex RH plug-in relay
[Ie] rated operational current
160 A
Complementary
current sensor type
A type closed toroid
network type
AC
DC
network frequency
45...440 Hz
[Ui] rated insulation voltage
1000 V
transformer ratio
1/1000
[Icw] rated short-time withstand current
100 kA 0.5 s
residual short-circuit withstand current
85 kA / 0.5 s IEC 60947-2
overvoltage category
IV
[Uimp] rated impulse withstand voltage
12 kV
mounting mode
Fixed cables)
Fixed plain backplate)
Fixed profiled sheet metal)
Fixed slotted backplate)
Clip-on DIN rail)
calorific value
3.19 MJ
connections - terminals
Screw connection 0,22 mm²
diameter
Inner 80 mm
cable outer diameter
40 mm 95 mm²
net weight
0,42 kg
height
122 mm
width
150 mm
depth
44 mm
Environment
IP degree of protection
Connectors IP20
IP30
environmental characteristic
Exposure to damp heat not in service 25...55 °C, RH 95 %) 28 cycles IEC 60068-2-30
Salt mistKb/2 IEC 60068-2-52
Exposure to damp heat in servicecategory C2 48 hours IEC 60068-2-56
pollution degree
Level 3 IEC 60664-1
ambient air temperature for operation
-35…70 °C
ambient air temperature for storage
-55…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
