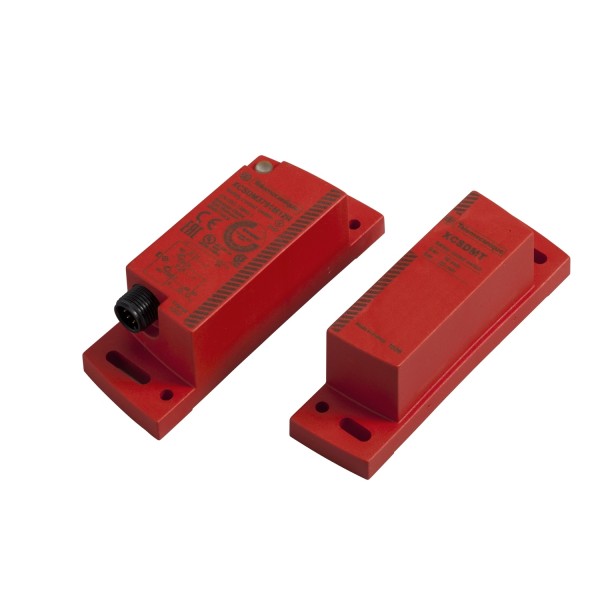

coded magnetic system XCSDM4 - SIL 3 - 2 PNP outputs

Details

Main
range of product	Preventa Safety detection
product or component type	Coded magnetic system
component name	XCSDM4
design	Rectangular
size	100 x 34 x 32 mm
contacts type and composition	1 NO + 1 NO
material	Plastic
electrical connection	Connector
connector type	M12
local signalling	Green, orange and red 1 LED
approach directions	9 directions
[Ue] rated operational voltage	24 V DC (- 20...10 %)
[Ui] rated insulation voltage	36 V DC

Complementary
type of output stage	Solid-state, PNP
safety outputs	2 outputs 1.5 A, 24 V, DC
alarm output	1 solid-state output, 0.5 A, 24 V, DC, PNP
[Sa] assured operating distance	10 mm
[Sar] assured tripping distance	20 mm
minimum actuation speed	0.01 m/s
[Uimp] rated impulse withstand voltage	2.5 kV EN/IEC 60947-5-1
protection type	Overload and short-circuit protection
switching frequency	3 Hz
time delay	100 ms activation
discordance time	2 s
[HFT] Hardware Fault Tolerance	1
tightening torque	< 1.8 N.m
installed device	32 maximum with 2 m long cable
marking	CE
safety level	Category 4 correctly wired conforming to EN/ISO 13849-1 PL = e correctly wired conforming to EN/ISO 13849-1 SIL 3 correctly wired conforming to EN/IEC 61508
safety reliability data	HFT = 1 MTTFd = 182 years PFD = 1.15E-5 PFH = 3.94E-9 SF = 92.5 %
enclosure material	Thermoplastic PBT
depth	32 mm
height	100 mm
width	34 mm
net weight	0.215 kg

Environment
standards	IEC 61508 ISO 14119 EN/IEC 62061 EN 13849-1 EN/IEC 60947-5-2 EN/IEC 60947-5-1 EN/IEC 60947-5-3
product certifications	CSA UL TÜV
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	10 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn for 11 ms conforming to IEC 60068-2-27
maximum sensitivity to magnetic fields	0.5 mT
electrical shock protection class	Class III conforming to EN/IEC 61140
IP degree of protection	IP67 conforming to IEC 60529

Offer Sustainability
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
