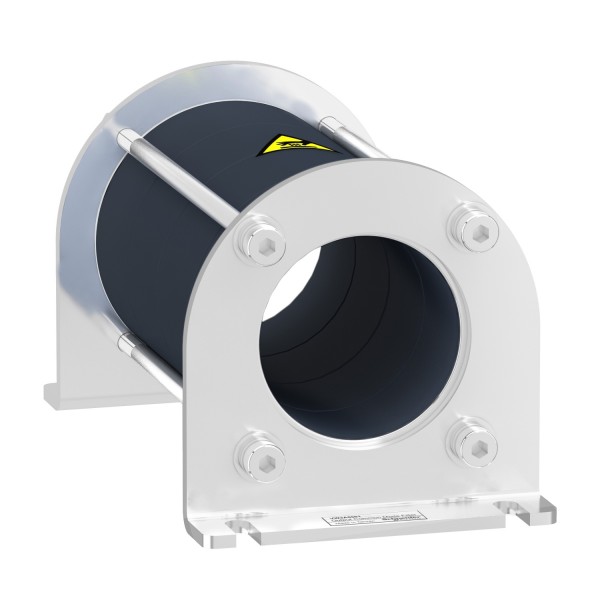

common mode filter for bearing current reduction - 146.4 µH

Tootekood: VW3A5501

Quick Overview

Saadavus: Tellimisel

182,73 € (ilma KM-ta)

Details

Main
product or component type
Common mode output filter
range compatibility
Altivar Process ATV900
Altivar Process ATV600
value of inductance
146.4 µH
product compatibility
Variable speed drive ATV630 wall mount, 0.75…11 kW, 380...480 V
Variable speed drive ATV650 wall mount, 0.75…11 kW, 380...480 V
Variable speed drive ATV930 wall mount, 0.75…11 kW, 380...480 V
Variable speed drive ATV950 wall mount, 0.75…11 kW, 380...480 V
Variable speed drive ATV630 wall mount, 0.75…5.5 kW, 200...240 V
Variable speed drive ATV930 wall mount, 0.75…5.5 kW, 200...240 V
Complementary
maximum motor cable length
150 m(unshielded cable) motor: 0.75…11 kW 380...480 V, with 1 filter
150 m(shielded cable) motor: 0.75…4 kW 380...480 V, with 1 filter
300 m(shielded cable) motor: 5.5…11 kW 380...480 V, with 2 filter
500 m(unshielded cable) motor: 0.75…4 kW 380...480 V, with 2 filter
500 m(unshielded cable) motor: 5.5…11 kW 380...480 V, with 1 filter + VW3A5501
500 m(shielded cable) motor: 0.75…4 kW 380...480 V, with 2 filter
1000 m(unshielded cable) motor: 0.75…5.5 kW 380...480 V, with 1 filter + VW3A5501
150 m(unshielded cable) motor: 0.75…5.5 kW 200...240 V, with 1 filter
150 m(shielded cable) motor: 0.75…4 kW 200...240 V, with 1 filter
300 m(shielded cable) motor: 5.5 kW 200...240 V, with 2 filter
500 m(unshielded cable) motor: 0.75…4 kW 200...240 V, with 2 filter
500 m(unshielded cable) motor: 5.5 kW 200...240 V, with 1 filter + VW3A5502
500 m(shielded cable) motor: 0.75…4 kW 200...240 V, with 2 filter
1000 m(unshielded cable) motor: 0.75…4 kW 200...240 V, with 1 filter + VW3A5501
saturation current
1.1 A
internal diameter
37.1 mm for 3-phase cable inside
37.1 mm for PE cable outside
electrical insulation class
Class I
mechanical robustness
Shocks class 3M4 conforming to IEC 60721-3-3
Vibrations class 3M4 conforming to IEC 60721-3-3
switching frequency
<= 10 kHz
maximum output frequency
100 Hz
height
119.2 mm
width
66 mm
depth
66 mm
net weight
0.44 kg
Environment
relative humidity
5…95 % without condensation
ambient air temperature for operation
-15…60 °C
ambient air temperature for storage
-40…70 °C
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
