common mode filter for bearing current reduction - 219.6 µH

Product was successfully added to your shopping cart.

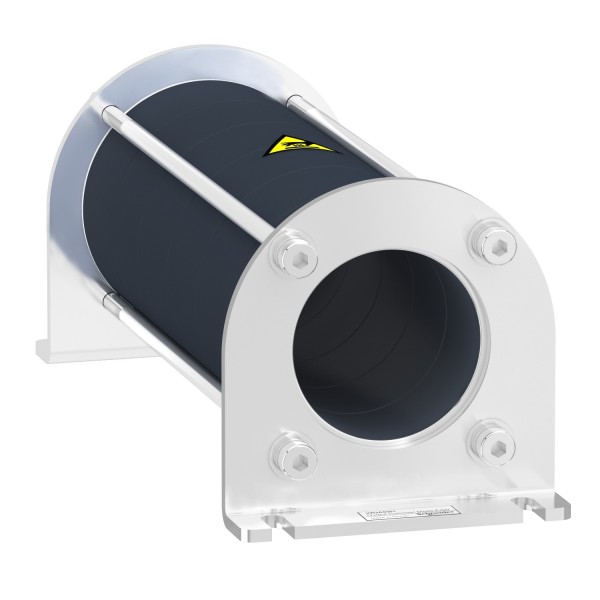

common mode filter for bearing current reduction - 219.6 µH

Tootekood: VW3A5502

Quick Overview

Saadavus: Tellimisel

230,75 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Common mode output filter
range compatibility	Altivar Process ATV900 Altivar Process ATV600
value of inductance	219.6 µH
product compatibility	Variable speed drive ATV630 wall mount, 0.75…11 kW, 380...480 V Variable speed drive ATV650 wall mount, 0.75…11 kW, 380...480 V Variable speed drive ATV930 wall mount, 0.75…11 kW, 380...480 V Variable speed drive ATV950 wall mount, 0.75…11 kW, 380...480 V Variable speed drive ATV630 wall mount, 0.75…5.5 kW, 200...240 V Variable speed drive ATV930 wall mount, 0.75…5.5 kW, 200...240 V

Complementary
maximum motor cable length	150 m(shielded cable) motor: 5.5…11 kW 380...480 V, with 1 filter 300 m(unshielded cable) motor: 0.75…11 kW 380...480 V, with 1 filter 300 m(shielded cable) motor: 0.75…4 kW 380...480 V, with 1 filter 500 m(unshielded cable) motor: 5.5…11 kW 380...480 V, with 1 filter + VW3A5501 500 m(shielded cable) motor: 5.5…11 kW 380...480 V, with 2 filter 1000 m(unshielded cable) motor: 0.75…5.5 kW 380...480 V, with 1 filter + VW3A5501 1000 m(unshielded cable) motor: 7.5…11 kW 380...480 V, with 2 filter 150 m(shielded cable) motor: 5.5 kW 200...240 V, with 1 filter 300 m(unshielded cable) motor: 0.75…5.5 kW 200...240 V, with 1 filter 300 m(shielded cable) motor: 0.75…4 kW 200...240 V, with 1 filter 500 m(unshielded cable) motor: 5.5 kW 200...240 V, with 1 filter + VW3A5501 500 m(shielded cable) motor: 5.5 kW 200...240 V, with 2 filter 1000 m(unshielded cable) motor: 0.75…4 kW 200...240 V, with 1 filter + VW3A5501 1000 m(unshielded cable) motor: 5.5 kW 200...240 V, with 2 filter
saturation current	1.1 A
internal diameter	37.1 mm for 3-phase cable inside 37.1 mm for PE cable outside
electrical insulation class	Class I
mechanical robustness	Shocks class 3M4 conforming to IEC 60721-3-3 Vibrations class 3M4 conforming to IEC 60721-3-3
switching frequency	<= 10 kHz
maximum output frequency	100 Hz
height	163.8 mm
width	66 mm
depth	66 mm
net weight	0.66 kg

Environment
relative humidity	5…95 % without condensation
ambient air temperature for operation	-15…60 °C
ambient air temperature for storage	-40…70 °C

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
