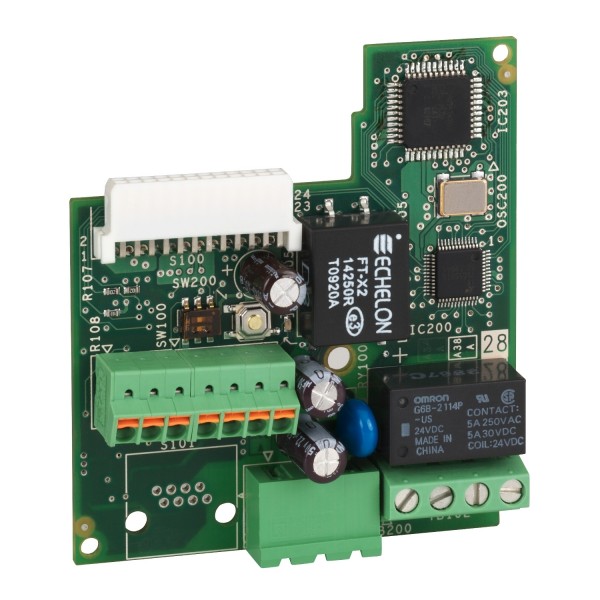

communication card LonWorks

Tootekood: VW3A21212

Quick Overview

Saadavus: Tellimisel

108,68 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Communication card
range compatibility	Altivar 212
communication port protocol	LonWorks

Complementary
electrical connection	Screw terminal NETA, NETB LonWorks transmission/reception data Screw terminal SHLD LonWorks communication shield Screw terminal G/E grounding terminal Spring terminal F programmable logic input Spring terminal R programmable contact input Spring terminal VIB multifunction programmable analog input Spring terminal CC control circuit equipotential Spring terminal P24 power supply output Screw terminal FLA, FLB, FLC multifunction programmable relay output
input type	Multifunction programmable logic input F < 24 V DC 5 mA sink or source Multifunction programmable contact input R < 24 V DC 5 mA sink or source Multifunction programmable analog input VIB 10 V DC 30 kOhm
output type	Multifunction programmable relay output FLA, FLB, FLC 250 V AC 1 A 1 Multifunction programmable relay output FLA, FLB, FLC 250 V AC 0.5 A 0.4 Multifunction programmable relay output FLA, FLB, FLC 30 V DC 0.5 A Power supply output P24 24 V DC 50 mA
electrical connection	Screw/spring terminal block
net weight	0.05 kg

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration

Contractual warranty
Warranty	18 months
