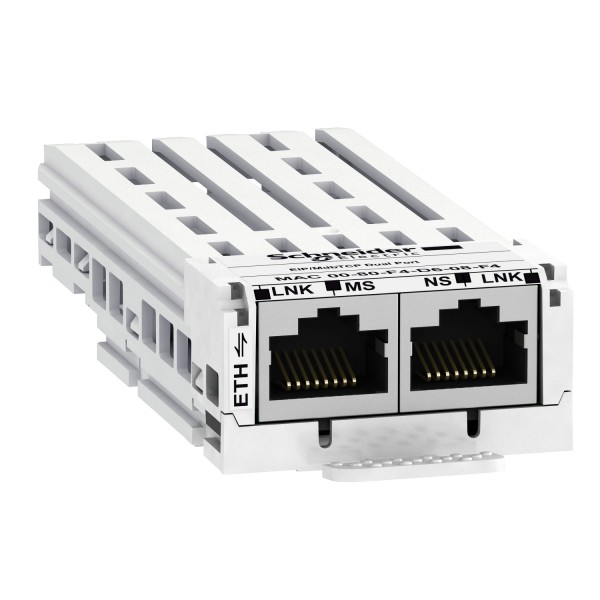

communication module Modbus TCP and EtherNet IP

Details

Main
range of product	Altivar
product or component type	Communication module
condition of use	Cannot be ordered alone, only possible in combination with a standard enclosure

Complementary
range compatibility	Altivar Process ATV600
communication port protocol	Ethernet/IP Modbus TCP
electrical connection	2 connectors RJ45, Ethernet IP/Modbus TCP
transmission rate	10/100 Mbps
communication service	SNMP agent Ethernet IP Modbus TCP server Ethernet IP/Modbus TCP Ethernet/IP adapter Ethernet IP RSTP support Ethernet IP FTP Ethernet IP ODVA AC drive and CiA 402 profile Ethernet IP/Modbus TCP Auto-MDIX Ethernet IP/Modbus TCP 32 parameters IN - 32 parameters OUT implicit messaging Ethernet IP/Modbus TCP FDR Ethernet IP/Modbus TCP
communication network type	IPv6 (internet protocol)
topology	Daisy chain
time synchronisation protocol	SNTP
web server	Embedded HTTP server
web services	Drive monitor Drive setting and diagnostic Pump function setting and monitoring Ethernet setting and diagnostic Save/restore drive configuration Customizable home page Widgets (ID, control, data table, diagnostic, charts) Upgrade drive firmware Energy monitoring
display type	1 LED MS (Module Status) 1 LED NS (Network Status) 1 LED TX/RX (Transmit/Receive port 1) 1 LED TX/RX (Transmit/Receive port 2)
bus profile	CiA 402 CIP AC Drive

Environment
product certifications	ODVA
