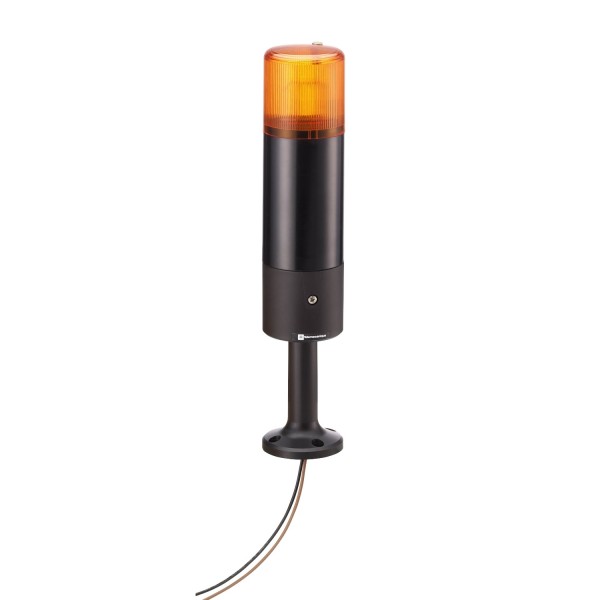

complete pre-cabled beacon - Ø 70 mm - flashing - orange - 24 V AC/DC

Ülevaaded: 0

Tootekood: XVDBA6

Quick Overview

Saadavus: Ei saa enam tellida

128,75 € (ilma KM-ta)

Details

Main
range of product
Harmony XVD Application
product or component type
Complete pre-cabled beacon
beacon or indicator bank unit type
1 illuminated unit
signalling type
Flashing
component name
XVD
light source
Flash discharge tube, orange
[Us] rated supply voltage
24 V AC/DC
Complementary
material
Glass reinforced polyamide base unit
Polycarbonate illuminated unit
mounting diameter
70 mm
flash energy
5 J
connections - terminals
Screw clamp terminals, 1 x 0.82 mm² with bared wire ends
[Ui] rated insulation voltage
250 V IEC 60947-1
nominal voltage limit
0.85...1.1 Un IEC 60947-5-1
current consumption
< 350 mA DC
< 550 mA AC
[Uimp] rated impulse withstand voltage
4 kV IEC 60947-1
flashing frequency
1 Hz
net weight
0,6 kg
Environment
standards
EN/IEC 60947-5-1
product certifications
UL
CSA
GOST
protective treatment
TC
ambient air temperature for operation
-25…50 °C
ambient air temperature for storage
-40…70 °C
electrical shock protection class
Class I on support tube, with metal fixing plate IEC 60536
Class II on support tube, with plastic fixing plate IEC 60536
IP degree of protection
IP40 IEC 60529
Contractual warranty
Garantii
18 months
