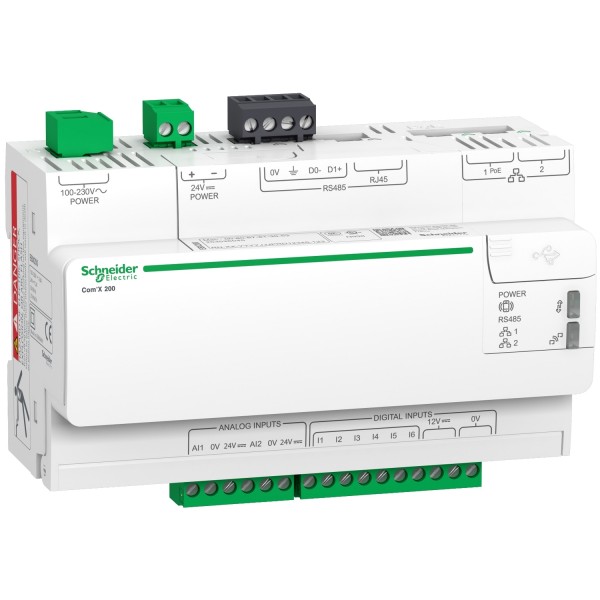

ComX 200 - data logger

Details

Complementary
[Us] rated supply voltage	Main or redundant power supply 24 V DC Main supply 100...230 V AC 50/60 Hz
maximum power consumption in W	26 W 100...230 V 26 W 24 V 15 W via PoE
communication network type	RS485, Modbus serial 1 RJ45 RS485, Modbus serial terminal block Ethernet, PoE 15W (Power over Ethernet) 1 RJ45 Ethernet, DHCP 1 RJ45
number of inputs	6 digital 2 analog
discrete input current	60 mA 12 V DC
sensor power supply	24 V DC 50 mA
analogue input type	Pt 1000 4...20 mA 0...10 V Pt 100
communication gateway	Ethernet TCP/IP to Modbus
memory capacity	128 MB RAM 256 MB flash
mounting mode	Clip-on
mounting support	35 mm DIN rail
product certifications	C-Tick CE
standards	EN 61010-1 EN 60950
depth	69 mm
height	109 mm
width	144 mm
net weight	450 g
local signalling	LED:power supply LED:status GPRS) LED:communication Modbus) LED:communication Ethernet) LED:communication WiFi) LED:I/O

Environment
relative humidity	5…95 % 55 °C without condensation
IP degree of protection	IP20 terminal block) IP40 front face)
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C
pollution degree	3
operating altitude	2000 m

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
