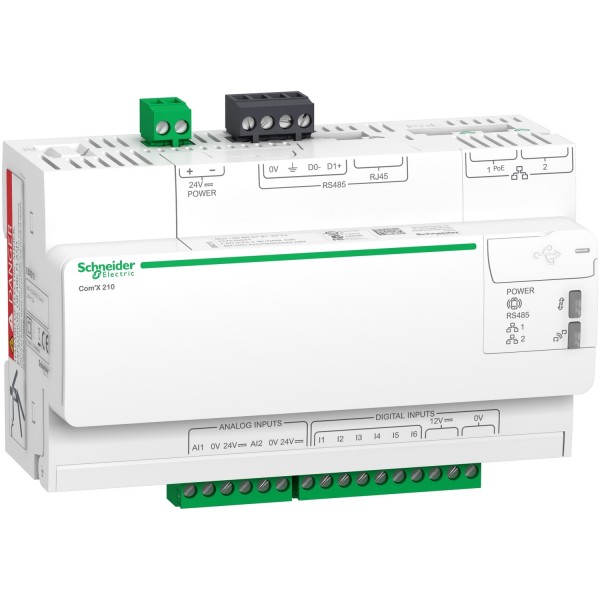

ComX 210 - data logger

Details

Complementary
[Us] rated supply voltage	Main supply 24 V DC
maximum power consumption in W	26 W 24 V 15 W via PoE
communication network type	RS485, Modbus serial 1 RJ45 RS485, Modbus serial terminal block Ethernet, PoE 15W (Power over Ethernet) 1 RJ45 Ethernet, DHCP 1 RJ45
number of inputs	6 digital 2 analog
discrete input current	60 mA 12 V DC
sensor power supply	24 V DC 50 mA
analogue input type	4...20 mA Pt 100 Pt 1000 0...10 V
communication gateway	Ethernet TCP/IP to Modbus
memory capacity	128 MB RAM 256 MB flash
mounting mode	Clip-on
mounting support	35 mm DIN rail
product certifications	CE CUL C-Tick UL
standards	EN 61010-1 UL 508 EN 60950 UL 60950
depth	69 mm
height	109 mm
width	144 mm
net weight	450 g
local signalling	LED:power supply LED:status GPRS) LED:communication Modbus) LED:communication Ethernet) LED:communication WiFi) LED:I/O

Environment
relative humidity	5…95 % 55 °C without condensation
IP degree of protection	IP20 terminal block) IP40 front face)
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
pollution degree	3
operating altitude	2000 m

Offer Sustainability
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
