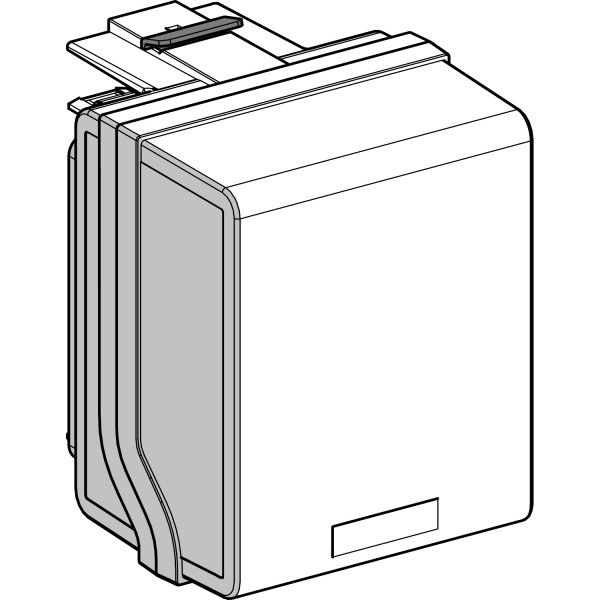

CONNECTOR 32A FUSE 10X38

Ülevaaded: 0

Tootekood: KSB32CF5

Quick Overview

Saadavus: Tellimisel

100,97 € (ilma KM-ta)

Details

Main
range of product
Canalis
range compatibility
KS busbar trunking
product or component type
Tap-off unit
busbar trunking compatibility
Canalis KS busbar trunking plug-in
[Ie] rated operational current
32 A 35 °C
protection type
fuse isolator:gG cylindrical 10 x 38 mm - 25 A NF
fuse isolator:aM cylindrical 10 x 38 mm - 32 A NF
provided equipment
fuse to be ordered separately
mounting mode
Plug-in with fixed polarity
tap-off unit polarity
3L+N+PE
colour
White RAL 9001)
Complementary
device application
Medium power distribution
[Ue] rated operational voltage
230...690 V depending on protective device
[Uimp] rated impulse withstand voltage
6,8 kV
[Ui] rated insulation voltage
690 V depending on protective device
network frequency
50/60 Hz
electrical connection
Cable clamp terminal - ISO32 6 mm² flexible
Cable clamp terminal - ISO32 10 mm² rigid
door/cover opening side
Front
tap-off unit disconnection mode
By drawing out
standards
IEC 61439-1
IEC 61439-6
body material
Plastic
width
135 mm
depth
153 mm
height
175 mm
net weight
0,6 kg
Environment
earthing system
TT
TN-S
IT
IP degree of protection
IP55 IEC 60529
IK degree of protection
IK08 IEC 62262
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Halogeensisu
Halogeenivaba toode
Contractual warranty
Garantii
18 months
