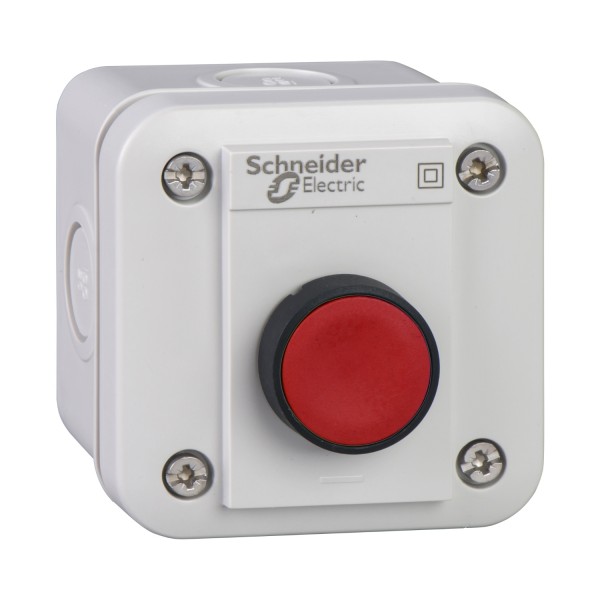

control station XAL-E - 1 flush pushbutton - spring return - red - 1 NC

Ülevaaded: 0

Tootekood: XALE1112

Quick Overview

Saadavus: Ei saa enam tellida

5,87 € (ilma KM-ta)

Details

Main
range of product
Harmony XALE
product or component type
Complete control station
device short name
XALE
product destination
For XB7 Ø 22 mm control and signalling units
control station application
One function
colour of base of enclosure
Light grey RAL 7035)
colour of cover
Light grey RAL 7035)
material
ABS (acrylonitrile butadiene-styrene)
IP degree of protection
IP54 IEC 60529
control station composition
1 flush push-button, red, spring return 1 NC
contact operation
Slow-break
Complementary
cable entry
2 knock-outs 16 mm
4 knock-outs for ISO M20
net weight
0,1 kg
marking
CE
positive opening
With EN/IEC 60947-5-1 appendix K
short-circuit protection
4 A cartridge fuse gG EN/IEC 60947-5-1
[Ui] rated insulation voltage
250 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
4 kV EN/IEC 60947-1
[Ie] rated operational current
0,1 A 250 V, DC-13, R300 EN/IEC 60947-5-1
0,22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
0,3 A 240 V, AC-14, D300 EN/IEC 60947-5-1
0,6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
electrical reliability
Λ <= 10exp(-6) 17 V 5 mA IEC 60947-5-4
Environment
protective treatment
TC
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…55 °C
electrical shock protection class
Class II IEC 60536
IK degree of protection
IK05 EN 50102
standards
EN/IEC 62208
EN/IEC 60947-5-5
EN/IEC 60947-1
EN/IEC 60947-5-1
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
