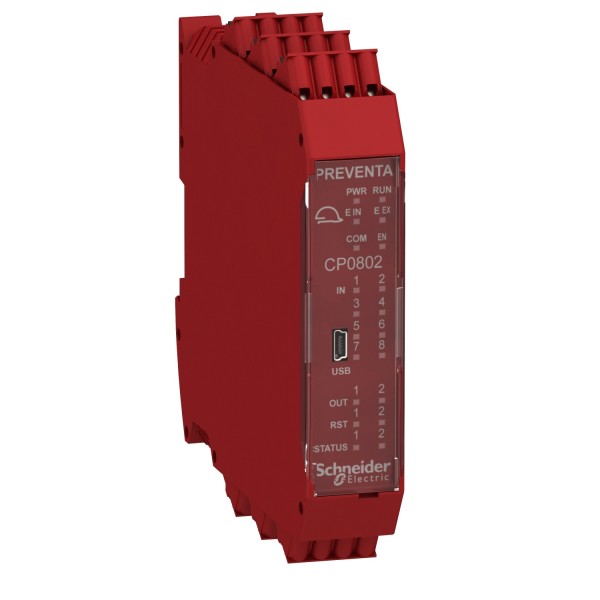

Controller with 8 inputs 2 outputs monitors expansion modules with spring term

Ülevaaded: 0

Tootekood: XPSMCMCP0802G

Quick Overview

Saadavus: Tellimisel

657,00 € (ilma KM-ta)

Details

Main
range of product
Preventa Safety automation
product or component type
Safety controller CPU
device short name
XPSMCM
electrical connection
Spring terminal
[Us] rated supply voltage
24 V - 20...20 % DC
number of inputs
8 digital for input connection
2 digital for interlock start/restart or external device monitoring
number of outputs
2 safety outputs OSSD for contactor/drive connection
4 test for line control outputs
2 configurable for diagnostic connection
discrete input voltage
24 V
discrete output current
400 mA
discrete input current
400 mA
discrete input type
Safety input
PNP
discrete output type
PNP
function of module
Emergency stop conforming to EN/ISO 13850
Guard monitoring conforming to EN/ISO 14119
Enabling switch monitoring conforming to EN/IEC 60947-5-1
Light curtain monitoring conforming to EN/IEC 61496-1
Foot switch monitoring conforming to EN/IEC 60947-5-1
Light curtain monitoring conforming to EN/ISO 14119
Switch monitoring conforming to EN 574
Two-hand control conforming to EN/ISO 14119
Safety mat monitoring conforming to EN 61326-1
Switch monitoring conforming to EN/IEC 61800-5-2
Muting function of light curtains conforming to EN/IEC 61800-5-2
Safety time delays
Counter functions
Complementary
synchronisation time between inputs
< 0.5 ms
power dissipation in W
3 W
maximum number of I/O expansion module
14 with 128 discrete output(s) for input
14 with 16 discrete output(s) for output
integrated connection type
Backplane expansion bus
USB 2.0 port
data storage equipment
SD card (optional)
inductive load
30 mH
load capacitance
0.82 µF
safety level
Can reach category 4 conforming to EN/ISO 13849-1
Can reach PL = e conforming to EN/ISO 13849-1
Type 4 conforming to EN/IEC 61496-1
SILCL 3 conforming to IEC 62061
quality labels
CE
local signalling
1 LED green with PWR marking for power ON
1 LED green with RUN marking for RUN (status)
1 LED red with E IN marking for internal error
1 LED red with E EX marking for external error
1 LED orange with COM marking for communication
1 LED blue with EN marking for master enable
8 LEDs yellow with IN marking for input status
2 LEDs green/red with OUT marking for output status
2 LEDs yellow with RST marking for restart signal
2 LEDs yellow with STATUS marking for output channel
connections - terminals
1 spring terminals, removable terminal block
2 spring terminals, removable terminal block
cable cross section
0.2…2.5 mm² - AWG 24...AWG 14 flexible cablewithout cable end
0.25…2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, with bezel
0.2…2.5 mm² - AWG 24...AWG 14 solid cablewithout cable end
0.25…2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, without bezel
0.25…2.5 mm² - AWG 23...AWG 14 solid cablewithout cable end
0.5…1 mm² - AWG 20...AWG 18 flexible cablewith cable end, with double bezel
mounting support
Omega 35 mm DIN rail conforming to EN 50022
depth
114.5 mm
height
99 mm
width
22.5 mm
net weight
0.25 kg
Environment
standards
EN/ISO 13849-1
IEC 62061
EN/IEC 61800-5-1
EN/IEC 61496-1
EN/IEC 61508
product certifications
RCM
TÜV
CULus
IP degree of protection
IP20
ambient air temperature for operation
-10…55 °C
ambient air temperature for storage
-20…85 °C
relative humidity
10…95 %
pollution degree
2
[Uimp] rated impulse withstand voltage
4 kV conforming to EN/IEC 61800-5-1
safety reliability data
PFHd = 6.06E-9 1/h
DC > 99 %
MTTFd < 100 years high
insulation
250 V AC between power supply and housing conforming to EN/IEC 61800-5-1
overvoltage category
II
electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2
Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3
Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3
vibration resistance
+/-0.35 mm (f= 10…55 Hz) conforming to EN/IEC 61496-1
shock resistance
10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to EN/IEC 61496-1
service life
20 year(s)
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
