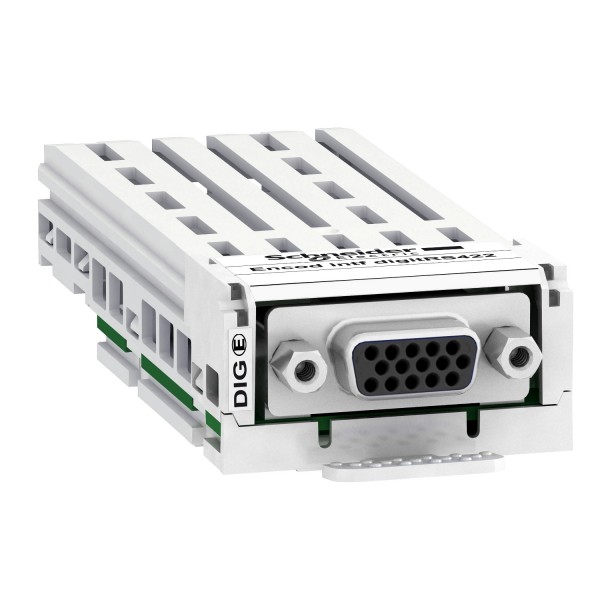

digital encoder interface module

Details

Main
range of product	Altivar
product or component type	Digital encoder interface module
range compatibility	Altivar Process ATV900 Altivar Process Modular Altivar Machine ATV340
communication port protocol	RS422
encoder type	EnDat 2.2 A/B/I incremental XCC1 type R A/B/I incremental XCC1 type X SSI absolute encoder XCC2 type SG SSI absolute encoder XCC3 type SB
[Us] rated supply voltage	5 V DC 4,75…5,25 V) 12 V DC 11,4…12,6 V) 24 V DC 22,8…25,2 V)

Complementary
maximum supply current	0,25 A 5 V DC 0,1 A 12 V DC 0,05 A 24 V DC
protection type	Short-circuit protection Overload protection
maximum cable distance between devices	100 m A/B/I) 50 m SSI) 100 m SSI)at 300 kHz 50 m EnDat 2.2) 100 m EnDat 2.2)with propagation delay compensation
maximum operating frequency	1000 kHz
input signal	Data+, Data- EnDat 2.2) Data+, Data- SSI) Temp+, Temp- A+,A-/B+,B-/I+,I- A/B/I) TTL
input impedance	121 Ohm
output signal	Clock+, Clock- SSI) Data+, Data-, Clock+, Clock- EnDat 2.2)
connector type	1 female high density SUB-D 15
net weight	0,15 kg

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
