Details
Characteristics
| range of product | Acti 9 | |
|---|---|---|

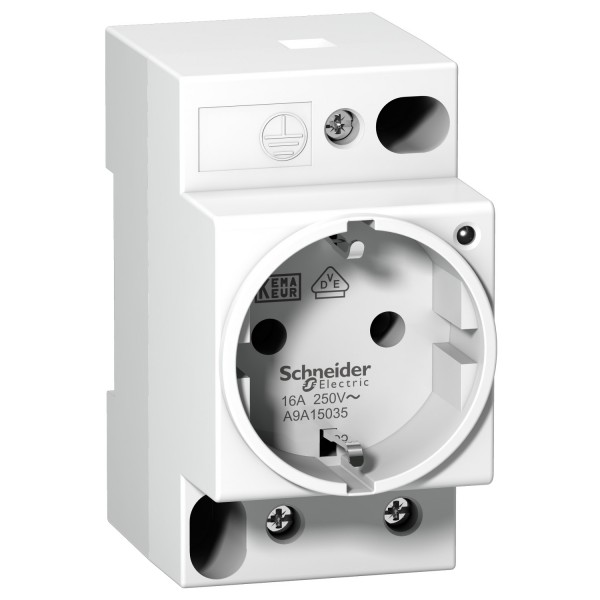

| product name | Acti 9 iPC | |
| product or component type | Modular socket-outlet | |
| device short name | IPC | |
| poles description | 2P + E | |
| outlet standard | German |
| [In] rated current | 16 A | |
|---|---|---|
| [Ue] rated operational voltage | 250 V AC 50/60 Hz | |
| mounting mode | Fixed | |
| mounting support | Symmetrical DIN rail | |
| 9 mm pitches | 5 | |
| height | 84 mm | |
| width | 45 mm | |
| depth | 63 mm | |
| net weight | 98 g | |
| colour | White | |
| local signalling | LED voltage presence indicator light service life: 100000 h | |
| connections - terminals | Tunnel type terminal1 cable(s) 6 mm² flexibleTunnel type terminal1 cable(s) 10 mm² rigid | |
| wire stripping length | 13 mm | |
| tightening torque | 1.2 N.m |
| standards | VDE 0620 | |
|---|---|---|
| IP degree of protection | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 | |
| IK degree of protection | IK03 | |
| tropicalisation | 2 conforming to IEC 60068-1 | |
| relative humidity | 95 % at 55 °C | |
| ambient air temperature for operation | -25…70 °C | |
| ambient air temperature for storage | -40…80 °C |
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
