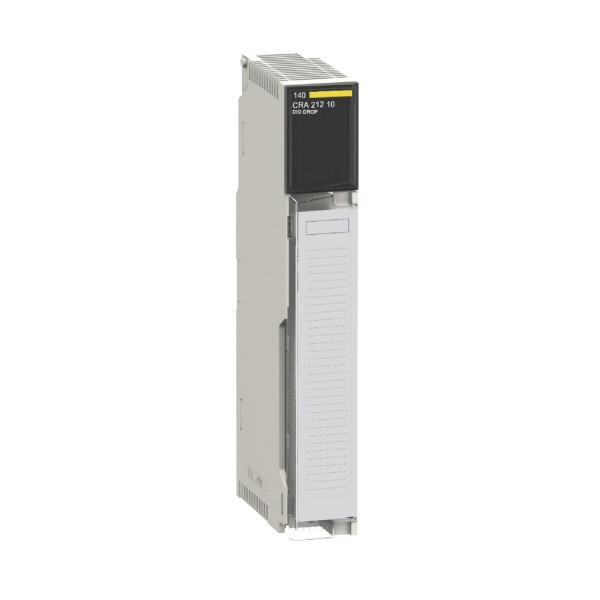

DIO drop interface Modicon Quantum - 115/230 V AC

Details

Main
range of product	Modicon Quantum automation platform
product or component type	DIO drop interface

Complementary
number of port	1 single
[Us] rated supply voltage	115/230 V AC
supply voltage limits	85…276 V
supply frequency	47...63 Hz
maximum supply current	0.2 A 115 V 0.4 A 230 V
inrush current	10 A 115 V 20 A 230 V
rated power in VA	50 VA
associated fuse rating	1.5 A
output voltage	5.1 V
nominal output current	3 A
minimum load current	0 A
short-circuit protection	With
output overvoltage protection	With
I/O words	30 I/32 O
typical backplanes	4 positions 3 positions 16 positions 2 positions 6 positions 10 positions
diagnostics startup	RAM RAM address Checksum
diagnostics run time	RAM address Checksum RAM
power dissipation in W	11 W
connections - terminals	Terminal block, 7 poles
module format	Standard

Environment
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m
protective treatment	Conformal coating Humiseal 1A33 TC
standards	UL 508
product certifications	CSA Class 1 Division 2 C-Tick UL GOST DNV

Contractual warranty
Warranty	18 months
