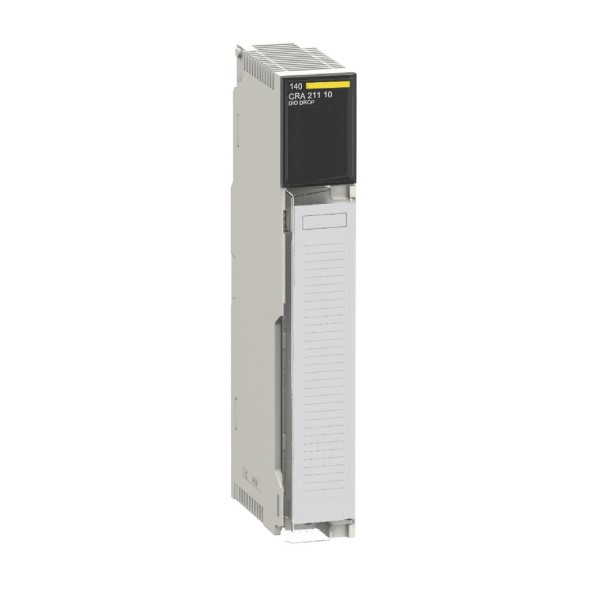

DIO drop interface Modicon Quantum - 115/230 V AC

Details

Main
range of product	Modicon Quantum automation platform
product or component type	DIO drop interface

Complementary
number of port	1 single
[Us] rated supply voltage	115/230 V AC
supply voltage limits	85…276 V
supply frequency	47...63 Hz
maximum supply current	0.2 A 115 V 0.4 A 230 V
inrush current	10 A 115 V 20 A 230 V
rated power in VA	50 VA
associated fuse rating	1.5 A
output voltage	5.1 V
nominal output current	3 A
minimum load current	0 A
short-circuit protection	With
output overvoltage protection	With
I/O words	30 I/32 O
typical backplanes	3 positions 2 positions 6 positions 16 positions 10 positions 4 positions
diagnostics startup	RAM address RAM Checksum
diagnostics run time	RAM address RAM Checksum
power dissipation in W	11 W
connections - terminals	Terminal block, 7 poles
module format	Standard

Environment
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m
protective treatment	TC
standards	UL 508
product certifications	CSA Class 1 Division 2 UL DNV C-Tick GOST

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
