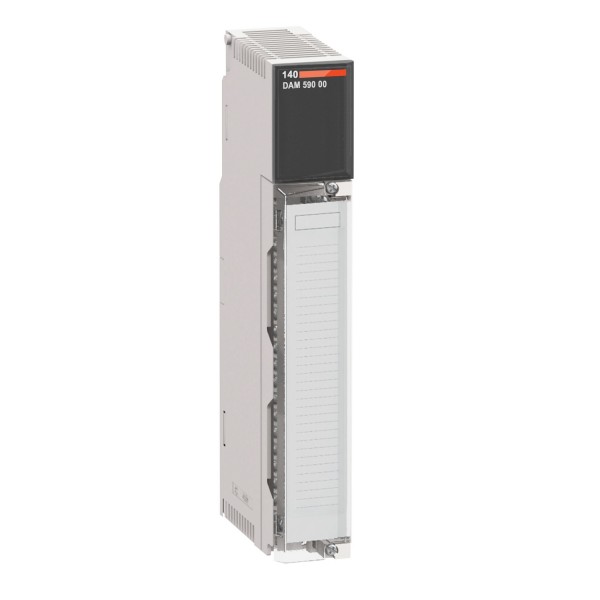

discrete I/O module Modicon Quantum - 16 I - 115 V AC - 8 O solid state

Ülevaaded: 0

Tootekood: 140DAM59000C

Quick Overview

Saadavus: Ei saa enam tellida

602,13 € (ilma KM-ta)

Details

Main
range of product
Modicon Quantum automation platform
product or component type
Mixed discrete I/O module
discrete I/O number
24
Complementary
discrete input number
16 2 groups of 8
addressing requirement
1 input word
0.5 output word
network frequency limits
47…63 Hz
discrete input voltage
115 V AC
input voltage limits
132 V typical
156 V during 10 s
200 V during one cycle
voltage state 0 guaranteed
0...20 V
voltage state 1 guaranteed
79...132 V 60 Hz
85...132 V 50 Hz
current state 0 guaranteed
<= 0.5 mA
current state 1 guaranteed
<= 11 mA 50 Hz
<= 13.2 mA 60 Hz
input impedance
14400 Ohm capacitive
response time
4.9...0.75 ms at at state 0 to state 1
7.3...12.3 ms at at state 1 to state 0
discrete output number
8 2 groups of 4
discrete output type
Solid state
discrete output voltage
115 V
output voltage limits
156 V AC during 10 s
200 V AC during 1 cycle
85...132 V typical AC typical
minimum load
5 mA
maximum load current
<= 4 A per point
<= 8 A per group
<= 8 A per module
maximum voltage drop
<1.5 V
absolute maximum output
20 A 2 cycles per point
26 A 3 cycles per group
30 A 1 cycle per point
30 A 2 cycles per group
45 A 1 cycle per group
10 A 3 cycles per point
dV/dt
400 V/µs
maximum leakage current
2.1 mA 115 V AC input circuit
2 mA output circuit
response time on output
<= 0.5 ms at state 0 to state 1
<= 0.5 ms at state 1 to state 0
protection type
Internal output protection by 5 A fuse per group
On output by RC filter
isolation between group
1000 Vrms for 1 minute
isolation between channels and bus
1780 Vrms for 1 minute
fault indication
Blown fuse on output
Loss of field power on output
power dissipation
5.5 W + (1.1 x total module load current)
external power requirement
85...132 V AC for output circuit
local signalling
1 LED (green)bus communication is present (Active):
1 LED (red)no voltage in output and input (F):
2 LEDs (green)output is turned on:
2 LEDs (red)fault detected on the input point:
2 LEDs (red)fault detected on the output point:
marking
CE
bus current requirement
250 mA
net weight
0.45 kg
Environment
resistance to electrostatic discharge
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields
10 V/m 80…1000 MHz conforming to IEC 801-3
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-40…85 °C
relative humidity
95 % without condensation
operating altitude
<= 5000 m
protective treatment
Conformal coating Humiseal 1A33
standards
CSA C22.2 No 142
FM Class 1 Division 2
UL 508
product certifications
CUL
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
