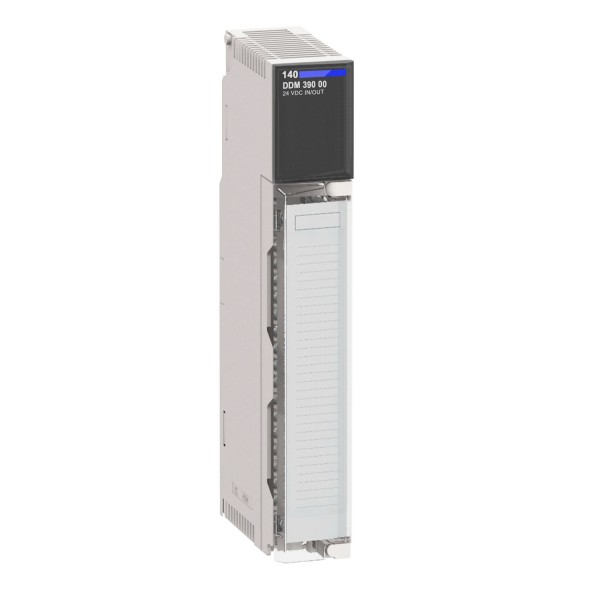

discrete I/O module Modicon Quantum - 16 I - 24 V DC - 8 O solid state

Ülevaaded: 0

Tootekood: 140DDM39000C

Quick Overview

Saadavus: Ei saa enam tellida

576,52 € (ilma KM-ta)

Details

Main
range of product
Modicon Quantum automation platform
product or component type
Mixed discrete I/O module
discrete I/O number
24
Complementary
discrete input number
16 2 groups of 8
discrete input logic
Sink
addressing requirement
0.5 output word
1 input word
network frequency limits
47…63 Hz
discrete input voltage
24 V DC
input voltage limits
56 V during 1.3 ms
<= 1 V during 10 s
<= 1 V during one cycle
30 V
voltage state 0 guaranteed
-3...5 V
voltage state 1 guaranteed
15...30 V
current state 0 guaranteed
<= 0.5 mA
current state 1 guaranteed
>= 2 mA
input impedance
2500 Ohm
discrete output number
8 2 groups of 4
discrete output type
Solid state
discrete output logic
Sink
discrete output voltage
24 V
output voltage limits
19.2...30 V DC typical
56 V DC during 1.3 ms
maximum load current
<= 0.5 A per point
<= 2 A per group
<= 4 A per module
maximum voltage drop
<0.4 V 0.5 A
absolute maximum output
5 A during 500 µs per point
maximum load inductance
500 mH at 4 Hz
maximum load capacitance
50 µF
maximum leakage current
0.4 mA 30 V DC
response time on output
<= 1 ms at state 0 to state 1
<= 1 ms at state 1 to state 0
protection type
On input by resistor limited
Internal output protection by 5 A fuse per group
On output by transient voltage suppression
associated fuse rating
5 A per group
isolation between group
500 Vrms for 1 minute
isolation between group and bus
1780 Vrms for 1 minute
fault indication
Loss of field power on output
Blown fuse on output
power dissipation
1.75 W + (0.36 x input point on) + (1.1 total output load current)
local signalling
1 LED (green)bus communication is present (Active):
1 LED (red)no voltage in output and input (F):
2 LEDs (green)output is turned on:
2 LEDs (red)fault detected on the input point:
2 LEDs (red)fault detected on the output point:
marking
CE
bus current requirement
330 mA
net weight
0.3 kg
Environment
resistance to electrostatic discharge
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields
10 V/m 80…1000 MHz conforming to IEC 801-3
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-40…85 °C
relative humidity
95 % without condensation
operating altitude
<= 5000 m
protective treatment
Conformal coating Humiseal 1A33
standards
UL 508
CSA C22.2 No 142
FM Class 1 Division 2
product certifications
CUL
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
