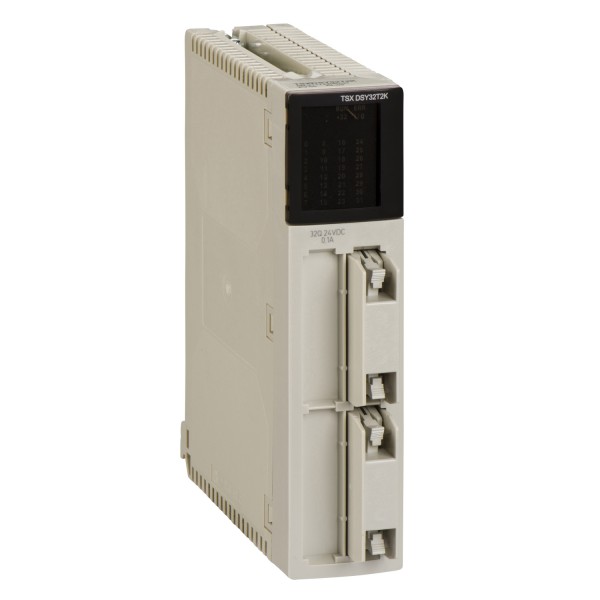

discrete output module Modicon Premium

Details

Main
range of product	Modicon Premium Automation platform
product or component type	Discrete output module
discrete output number	64
discrete output type	Solid state protected
discrete output voltage	24 V DC positive conforming to EN/IEC 61131-2 19...30 V

Complementary
current per channel	0.1 A
maximum current per module	5 A
maximum leakage current	0.1 mA, at 30 V
maximum tungsten load	1.2 W
[Ures] residual voltage	1.5 V
response time	1.2 ms
paralleling of outputs	Yes : 3 maximum
output overvoltage protection	By transil diode
reverse polarity protection	Reverse mounted diode
output overload protection	Automatic trip
short-circuit protection	Automatic trip
minimum load impedance	220 W at state 1
isalotion resistance	> 10 MOhm 500 V
power dissipation	(2.4 W + 0.1 W x No of outputs)
product compatibility	Dial and Power
marking	CE
electrical connection	4 connectors HE-10
current consumption	155 mA at 5 V DC
module format	Standard
net weight	0.36 kg

Environment
dielectric strength	1500 V 50/60 Hz 60 s
standards	UL 508 CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group C 93/68/EEC 89/336/EEC IEC 61131-2 CSA C22.2 No 142 CSA C22.2 No 213 Class I Division 2 Group B 92/31/EEC CSA C22.2 No 213 Class I Division 2 Group D 73/23/EEC
product certifications	RINA DNV BV ABS GL RMRS LR
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-25…70 °C
relative humidity	10…95 % without condensation for operation 5…95 % without condensation for storage
operating altitude	0...2000 m
protective treatment	TC
IP degree of protection	IP20
pollution degree	2

Contractual warranty
Warranty	18 months
