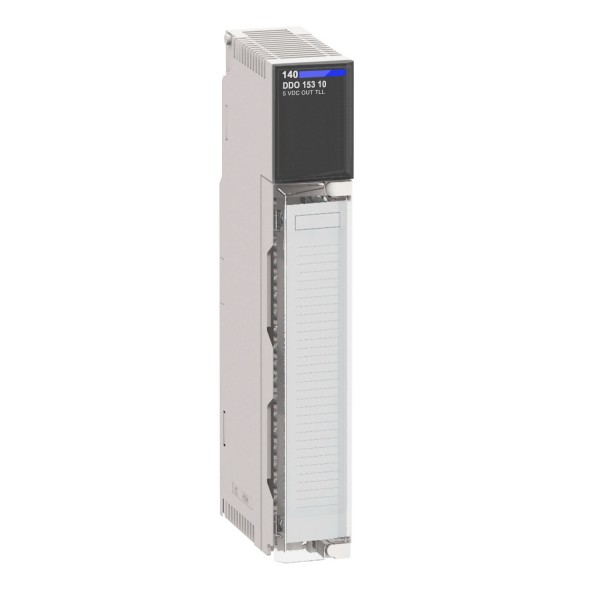

discrete output module Modicon Quantum - 12 O

Details

Main
range of product	Modicon Quantum automation platform
product or component type	Dc discrete output module
discrete output number	12

Complementary
group of channels	2 groups of 6
discrete output logic	Negative logic (sink)
addressing requirement	1 input word 1 output word
discrete output voltage	24...125 V DC
output voltage limits	19.2...156.2 V
maximum load current	<= 3 A at 0…60 °C each group <= 6 A at 0…60 °C per module <= 0.75 A at 0…40 °C each point
surge current	4 A for 1 ms
response time	1 ms at state 0 to state 1 1 ms at state 1 to state 0
short-circuit protection	With
output overvoltage protection	By varistor per group
load inductance	No limit (protected by diode)
maximum tungsten load	<41 W 115 V <46 W 130 V <8 W 24 V
switching frequency	<= 50 Hz
fault indication	Overcurrent
isolation between channels and bus	2500 Vrms DC for 1 minute
isolation between group	1200 Vrms DC for 1 minute
protection type	Internal output protection by 4 A fuse
power dissipation	1 W + (0.77 x all points on)
marking	CE
local signalling	1 LED (green)bus communication is present (Active): 1 LED (red)external fault detected (F): 16 LEDs (green)input status:
bus current requirement	375 mA 6 outputs at state 1 650 mA 12 outputs at state 1
module format	Standard
net weight	0.45 kg

Environment
product certifications	GOST FM Class 1 Division 2 C-Tick RMRS
standards	UL 508 CSA C22.2 No 142
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
