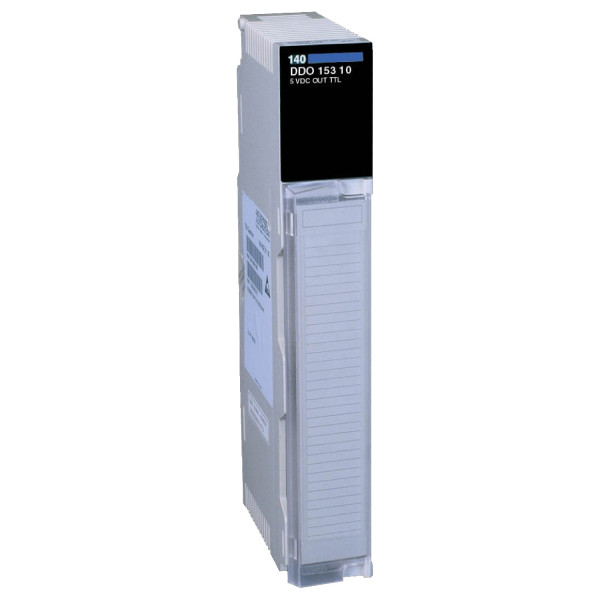

discrete output module Modicon Quantum

Details

Main
range of product	Modicon Quantum automation platform
product or component type	Dc discrete output module
discrete output number	32

Complementary
group of channels	4 groups of 8
discrete output logic	Positive logic (source)
addressing requirement	2 output words
discrete output voltage	24 V DC
output voltage limits	19.2...30 V
absolute maximum output	56 V for 1.3 s decaying pulse
maximum voltage drop	<0.4 V 0.5 A
maximum load current	16 A per module 4 A per group
surge current	5 A for 0.0005 s
response time	<= 1 ms at state 0 to state 1 <= 1 ms at state 1 to state 0
maximum leakage current	0.4 mA 30 V
load inductance	Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 50 Hz
fault indication	Blown fuse Loss of field power
associated fuse rating	3 A each point 5 A per group
isolation between channels and bus	1780 Vrms DC for 1 minute
isolation between group	500 Vrms DC for 1 minute
protection type	Internal output protection by 5 A fuse per group
power dissipation	1.75 W + (0.4 V x total module load current)
marking	CE
local signalling	1 LED (green)bus communication is present (Active): 1 LED (red)external fault detected (F): 32 LEDs (green)input status:
bus current requirement	330 mA
module format	Standard
net weight	0.45 kg

Environment
product certifications	GOST BV RMRS ABS DNV GL RINA C-Tick FM Class 1 Division 2 Safety certification non interfering
standards	UL 508 CSA C22.2 No 142
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
