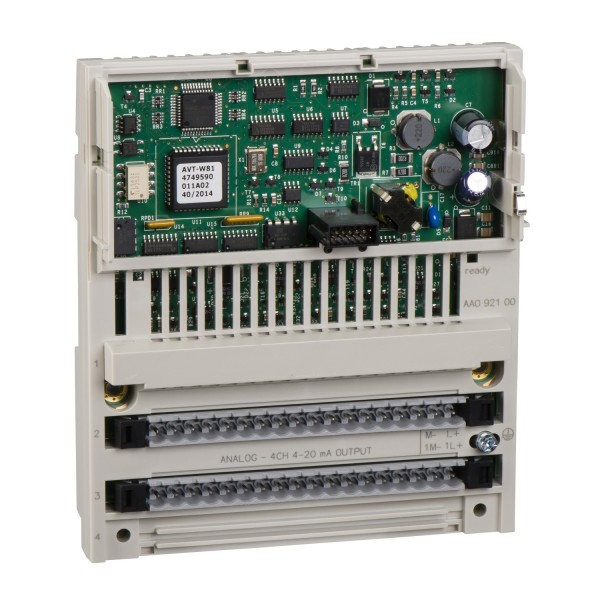

distributed analog output Modicon Momentum - 4 Output

Details

Main
range of product	Modicon Momentum automation platform
product or component type	Analogue output base

Complementary
analogue output number	4
data format	Full 16 bits signed
analogue output range	+/- 10 V 12 bits + sign >= 1 kOhm 4...20 mA 12 bits + sign <= 0.6 kOhm
maximum load capacitance	1 µF
absolute accuracy error	+/- 0.2 % of full scale +/- 10 V 25 °C +/- 0.25 % full scale +/- 10 V 60 °C +/- 0.4 % of full scale 4...20 mA 25 °C +/- 0.5 % of full scale 4...20 mA 60 °C
temperature drift	10 %oFS/°C +/- 10 V 60 °C 30 %oFS/°C 4...20 mA 60 °C
update time	2 ms
full scale	10 V +/- 10 V 2 mA 4...20 mA
fail state	Hold Reset to full scale Reset to zero
isolation between channels and ground	500 V AC for 1 minute
maximum power dissipation in W	8,5 W
protection type	Internal 2 A slow-blow
output short-circuit protection	With in voltage circuit
external power requirement	+/- 30 V DC 24 V DC
permissible common mode voltage	250 V 47...63 Hz AC between channels to ground 250 V 47...63 Hz DC
reverse polarity protection	Internal
marking	CE
local signalling	Channel status 4 LEDs
current consumption	150 mA 24 V DC actuator 530 mA 24 V DC base
module format	Standard
height	125 mm
depth	47,5 mm
width	141,5 mm
net weight	0,215 kg

Environment
product certifications	UL CSA
protective treatment	TC
resistance to electrostatic discharge	4 kV contact IEC 801-2 8 kV on air IEC 801-2
resistance to electromagnetic fields	10 V/m 80...1000 MHz IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
