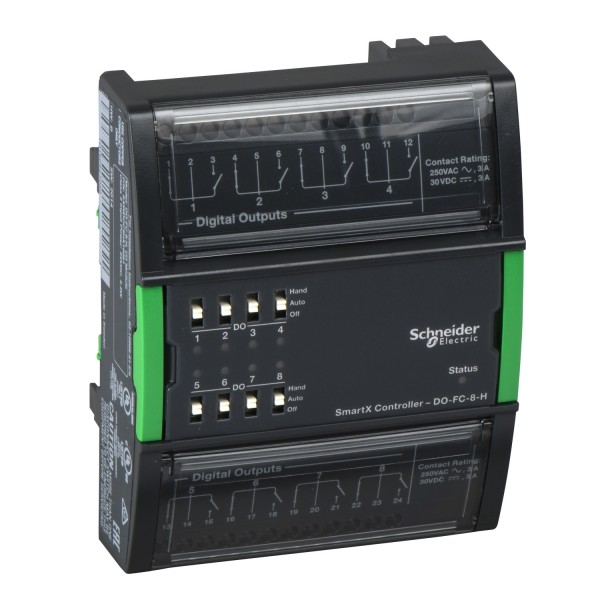

DO-FC-8-H Module: 8 Digital Outputs (Form C) with hand control/override switches

Ülevaaded: 0

Tootekood: SXWDOC8HX10001

Quick Overview

Saadavus: Tellimisel

1 217,29 € (ilma KM-ta)

Details

Main
range
EcoStruxure Building Operation
product name
I/O Modules
device short name
DO-FC-8-H
product brand
Schneider Electric
product or component type
I/O module
discrete input voltage
24 V
discrete output number
8
discrete output type
Relay
Complementary
range compatibility
TB-IO-W1 terminal base
discrete input voltage type
DC
material
ABS/PC
control type
With integrated switch for off/on/automatic
maximum power consumption in W
2,2 W
local signalling
LED green relay energised
electrical connection
Plug-in sub-base 24 V DC
mounting support
DIN rail
Wall
width
30 mm
depth
64 mm
height
114 mm
quantity per set
1
net weight
209 g
Environment
standards
UL 864
UL 916
FCC CFR 47 part 15
product certifications
ICES-003
FCC part 15 class B
CE
WEEE
RCM
CULus
ambient air temperature for operation
0…50 °C
ambient air temperature for storage
-20…70 °C
relative humidity
0…95 % non-condensing
IP degree of protection
IP20
flame retardance
UL94V0-5VB
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
