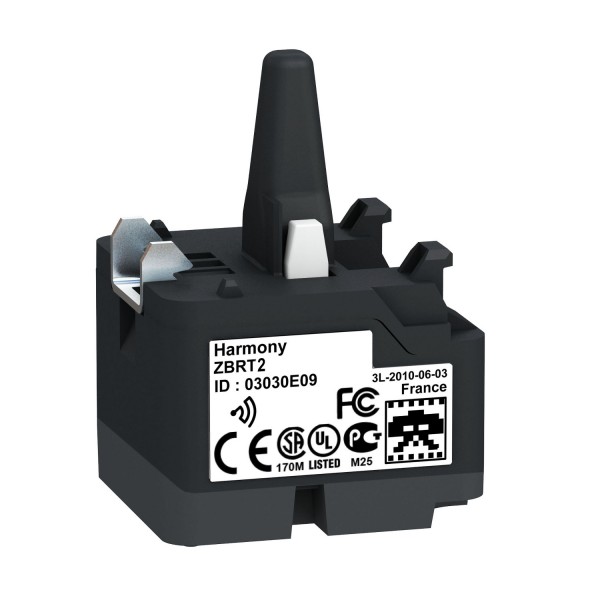

double actions (up/down) transmitter for wireless and battery less pushbutton

Details

Main
range of product	Harmony XB5
product or component type	Wireless and batteryless transmitter
device short name	XB5R
bezel material	Plastic
mounting diameter	22 mm
transmission frequency	2405 MHz
emission class	5M00G7W
antenna type	Omnidirectional

Complementary
max power consumption in W	1 mW
number of channels	1
modulation technique	O-QPSK
bandwidth	5 MHz
antenna gain	0 dBi
embedding depth	42 mm
CAD overall height	41,5 mm
CAD overall width	30 mm
CAD overall depth	43 mm
net weight	0,025 kg
operating travel	4,3 mm total travel)
operating force	25 N C/O changing electrical state
mechanical robustness	Free fall resistance 1000 mm EN/IEC 60068-2-32
standards	CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 UL 508
radio agreement	ANATEL ARIB T66 FCC ICASA RSS SRRC
communication port protocol	Zigbee green power 2,4 GHz IEEE 802.15.4
maximum sensing distance	100 m in free field 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
acquisition time	2 ms
response time	< 2 ms
fixing mode	Fixing nut beneath head 2…2,4 N.m
electrical composition code	PW1

Environment
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…55 °C
relative humidity	95 % 70 °C without condensation
IP degree of protection	IP65 IEC 60529 front face) IP30 IEC 60529 back face) IP65 UL Type 12 front face)
IK degree of protection	IK03 IEC 50102
mechanical durability	400000 cycles
shock resistance	25 gn 6 ms) 6000 shocks IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
vibration resistance	5 gn 11…500 Hz)IEC 60068-2-6 +/- 10 mm 2…11 Hz)IEC 60068-2-6
electromagnetic compatibility	Electrostatic discharge immunity test 8 kV in free air (in insulating parts)) Electrostatic discharge immunity test 6 kV on contact (on metal parts)) Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) Susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m) Immunity for industrial environments Radiated emission
product certifications	CSA CCC UL GOST C-Tick BT 2006/95/EC
directives	2004/108/EC - electromagnetic compatibility 1999/5/EC - R&TTE directive
