double contact block's for head Ø22 2NC Faston connector

Product was successfully added to your shopping cart.

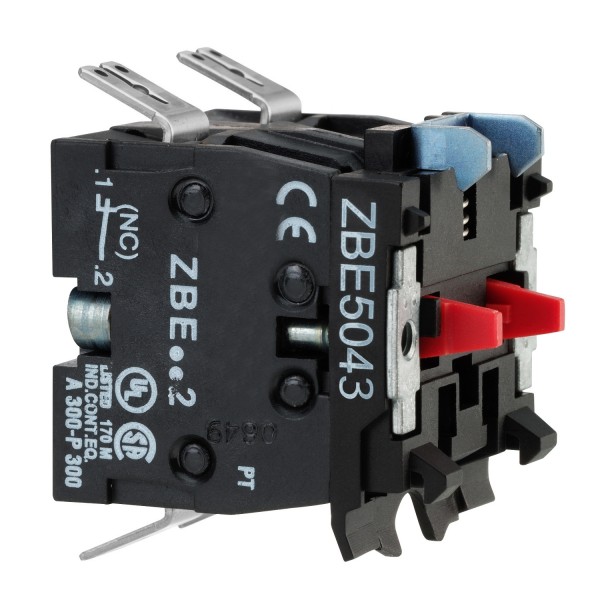

double contact block's for head Ø22 2NC Faston connector

Tootekood: ZBE5043

Quick Overview

Saadavus: Tellimisel

24,92 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XB4 Harmony XB5
product or component type	Contact block
device short name	ZBE
sale per indivisible quantity	1
IP degree of protection	IP20 conforming to IEC 60529
contacts type and composition	2 NC
contact operation	Slow-break
contact block type	Double
contacts usage	High power switching contacts
connections - terminals	Faston connector, connection size: 1 x 6.35 mm Faston connector, connection size: 2 x 2.8 mm

Complementary
net weight	0.032 kg
positive opening	With
mechanical durability	10000000 cycles
short-circuit protection	10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current	10 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage	300 V conforming to EN 60947-1
[Uimp] rated impulse withstand voltage	EN 60947-1 6 kV
[Ie] rated operational current	1.1 A at 125 V, DC-13, P300 conforming to EN/IEC 60947-5-1
mounting of block	Front mounting
condition of use	Mounting on push-button collar
electrical composition code	C15 (quantity <= 1)

Environment
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
