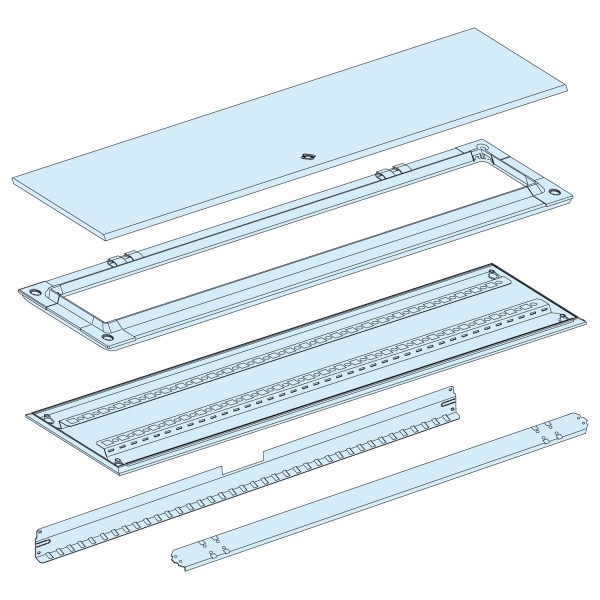

DUCT (REAR ENCLOSURE+PLAIN DOOR) W300 11M PRISMA G IP55

Ülevaaded: 0

Tootekood: 08343

Quick Overview

Saadavus: Tellimisel

550,98 € (ilma KM-ta)

Details

Main
range
Prisma
product name
Prisma G
IP degree of protection
IP55 with door
product or component type
Door
Rear panel
enclosure type
Functional enclosure delivered in kit form
device application
Low voltage electrical distribution
enclosure mounting
Surface
type of front plate
Without
number of vertical modules [50 mm]
11
number of 18 mm modules per row
10
provided equipment
1 x door for enclosure
Complementary
installation description
Wall-mounted duct 300 mm
[Ui] rated insulation voltage
1000 V
[In] rated current
630 A 40 °C IEC 61439-2
enclosure material
Rear panel treated sheet steel
Door treated sheet steel
additional information
Can be combined side by side and one on top of another
quantity per set
Set of 1
height
650 mm
width
300 mm
depth
260 mm
net weight
11,84 kg
surface finish
Matt
Smooth
colour
White RAL 9001)
Environment
IK degree of protection
IK10 with door EN/IEC 62262
protective treatment
Electrophoresis treatment and hot-polymerised polyester epoxy powder
standards
IEC 61439-1
IEC 61439-2
IEC 62208
mechanical robustness
Seismic tests - 2.5G IEC 60068-2-57
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Contractual warranty
Garantii
18 months
