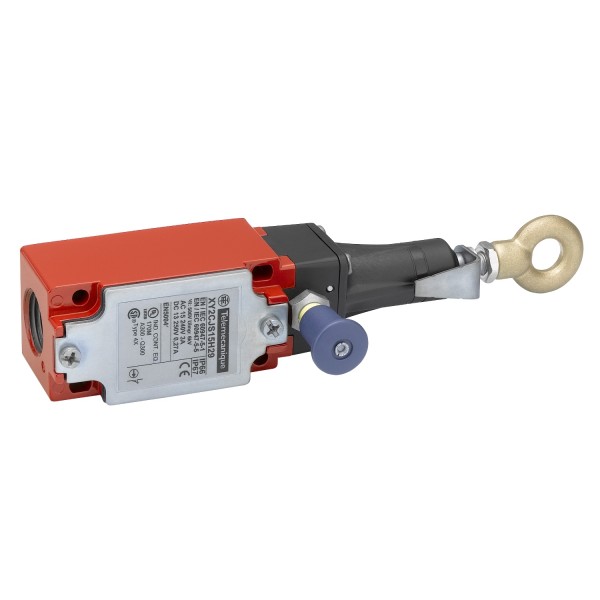

e-stop rope pull switch XY2CJ - straight - 2NC+1NO - Pg13.5

Ülevaaded: 0

Tootekood: XY2CJS19

Quick Overview

Saadavus: Tellimisel

51,33 € (ilma KM-ta)

Details

Main
range of product
Preventa XY2
product or component type
Latching emergency stop rope pull switch
device short name
XY2C
housing colour
Red RAL 3000
overvoltage category
Class I conforming to EN/IEC 61140
Complementary
local signalling
Color indicator
number of cables
1
trigger cable maximum length
20 m
body material
Zamak
head material
PA (polyamide)
cover material
Galvanised steel
reset
By pull button
contacts type and composition
2 NC + 1 NO
contact operation
Slow-break
trigger cable anchor point
RH or LH side
connections - terminals
Screw clamp terminal, 1 x 0.34...1 x 1 mm²
Screw clamp terminal, 1 x 0.34...2 x 0.75 mm²
tightening torque
0.8…1.2 N.m
cable entry number
1 tapped entry for Pg 13.5 cable gland
safety level
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
safety reliability data
B10d = 500000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
marking
CE
mechanical durability
100000 cycles
distance between cable supports
5 m
[Ie] rated operational current
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 appendix A
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
6 A
[Ui] rated insulation voltage
400 V (pollution degree 3) conforming to EN/IEC 60947-1
300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage
EN/IEC 60947-1 4 kV
positive opening
With conforming to EN/IEC 60947-5-1
maximum resistance across terminals
25 MOhm conforming to EN/IEC 60255-7 category 3
25 MOhm conforming to NF C 93-050 method A
short-circuit protection
6 A cartridge fuse type gG conforming to EN/IEC 60269
terminals description ISO n°1
(31-32)NC
(21-22)NC
(13-14)NO
net weight
0.455 kg
compatibility code
XY2CJ
Environment
standards
Machinery directive 2006/42/EC
UL 508
EN/IEC 60947-5-1
EN/ISO 13850
EN/IEC 60204-1
CSA C22.2 No 14
Work equipment directive 2009/104/EC
EN/IEC 60947-5-5
product certifications
UL category NISD emergency stop devices
CSA
CCC
EAC
protective treatment
TC
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
10 gn (f= 10…150 Hz) conforming to EN/IEC 60068-2-6
shock resistance
50 gn 11 ms conforming to EN/IEC 60068-2-27
IP degree of protection
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
