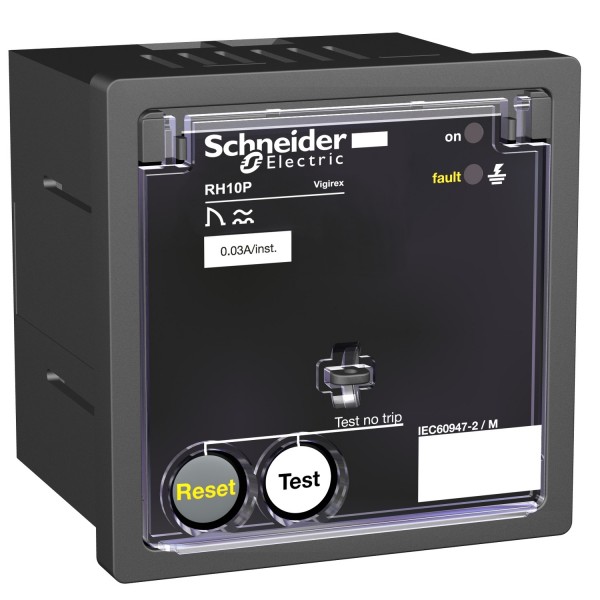

Earth-leakage relay RH10P - 300 mA - 130 V

Ülevaaded: 0

Tootekood: 56225

Quick Overview

Saadavus: Tellimisel

171,75 € (ilma KM-ta)

Details

Main
range
Vigirex
range of product
Vigirex
device short name
RH10P
product or component type
Residual current protection relay
range compatibility
Vigirex RH TOA earth leakage current sensor
Vigirex RH A earth leakage current sensor
relay application
Residual current protection relay
Complementary
earthing system
TT
IT
TN-S
[Us] rated supply voltage
110...130 V AC 50/60 Hz
power consumption in VA
4 VA
type of measurement
Earth fault current internal measurement 80...100 %
residual earth-leakage time delay adjustment type
Instantaneous 0,3 A
test function
Local
Remote test
monitoring
Electronics continuous)
Power supply continuous)
Relay/sensor link continuous)
[Ithe] conventional enclosed thermal current
8 A
minimum load
10 mA 12 V
net weight
0,3 kg
mechanical robustness
Fire resistance IEC 60695-2-1
IK protection 2 joulesIK07 EN 50102
IP protectionIP20 IEC 60529
IP protectionIP30 IEC 60529
IP protectionIP40 IEC 60529
Vibrations 13.2...100 Hz0.7 g
Vibrations 2...13.2 Hz+/- 1 mm
earth-leakage protection class
Class A si
Class AC
overvoltage category
IV
tamperproof of settings
Protected by sealable cover
mounting support
Panel
height
72 mm
width
72 mm
depth
78 mm
connections - terminals
Auxiliary power supply terminal block 0,2…2,5 mm² flexible AWG 24...AWG 12
Auxiliary power supply terminal block 0,2…2,5 mm² rigid AWG 24...AWG 12
Auxiliary power supply terminal block 0,25…2,5 mm² flexible AWG 24...AWG 12
Fault terminal block 0,2…2,5 mm² flexible AWG 24...AWG 12
Fault terminal block 0,2…2,5 mm² rigid AWG 24...AWG 12
Fault terminal block 0,25…2,5 mm² flexible AWG 24...AWG 12
Relay test and fault reset terminal block 0,2…2,5 mm² flexible AWG 24...AWG 12
Relay test and fault reset terminal block 0,2…2,5 mm² rigid AWG 24...AWG 12
Relay test and fault reset terminal block 0,25…2,5 mm² flexible AWG 24...AWG 12
Sensor terminal block 0,2…2,5 mm² flexible AWG 24...AWG 12
Sensor terminal block 0,2…2,5 mm² rigid AWG 24...AWG 12
Sensor terminal block 0,25…2,5 mm² flexible AWG 24...AWG 12
Voltage presence terminal block 0,2…2,5 mm² flexible AWG 24...AWG 12
Voltage presence terminal block 0,2…2,5 mm² rigid AWG 24...AWG 12
Voltage presence terminal block 0,25…2,5 mm² flexible AWG 24...AWG 12
wire stripping length
Auxiliary power supply 7 mm
Fault 7 mm
Relay test and fault reset 7 mm
Sensor 7 mm
Voltage presence 7 mm
tightening torque
Auxiliary power supply 0,6 N.m
Fault 0,6 N.m
Relay test and fault reset 0,6 N.m
Sensor 0,6 N.m
Voltage presence 0,6 N.m
Environment
ambient air temperature for operation
-35…70 °C
ambient air temperature for storage
-55…85 °C
electromagnetic compatibility
Conducted and radiated emissionsB CISPR 11
Conducted radio-frequency immunity test3 IEC 61000-4-6
Electrostatic discharge immunity test4 IEC 61000-4-2
High-energy conducted susceptibility4 IEC 61000-4-5
Low-energy conducted susceptibility4 IEC 61000-4-4
Radiated susceptibility3 IEC 61000-4-3
electrical shock protection class
Class II
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
