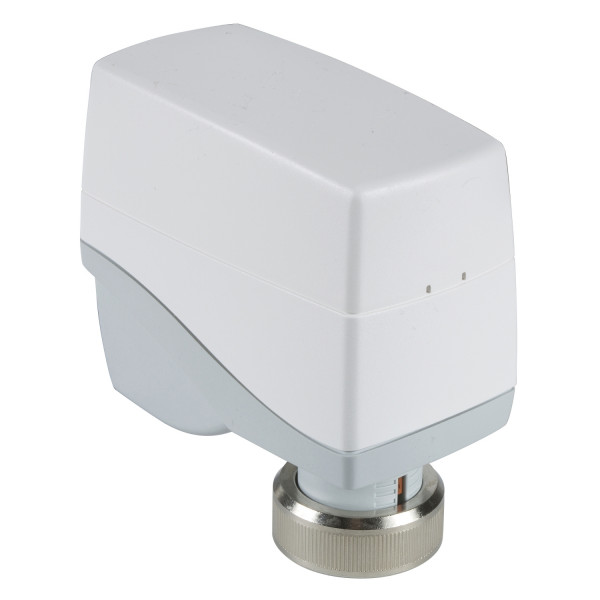

EBE - EnOcean 868MHz - Battery powered valve driver

Details

Main
range	EcoStruxure Building Expert
product name	Enocean
product or component type	Actuator
device application	Temperature control

Complementary
device mounting	Surface
transmission frequency	868 MHz
operating distance	30 mm with walls
type of measurement	Temperature measurement range: 0...40 °C +/- 0.5 °C
housing colour	Pure white RAL 9010
power supply type	Battery
battery type	3 alkaline 1.5 V
battery life	3 year(s)
display type	LED
operating position	+/- 90° to vertical plane
maximum noise figure	28 dB
service description	Maintenance free
operating force	100 N
Nominal stroke	3 mm (10 s)
IP degree of protection	IP40 conforming to EN 60529
market segment	Small buildings
height	91.5 mm
width	47 mm
depth	85 mm
net weight	0.157 kg without battery 0.225 kg with battery

Environment
ambient air temperature for operation	0…50 °C
standards	IEC 13543-3-10

Offer Sustainability
EU RoHS Directive	Compliant EU RoHS Declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
