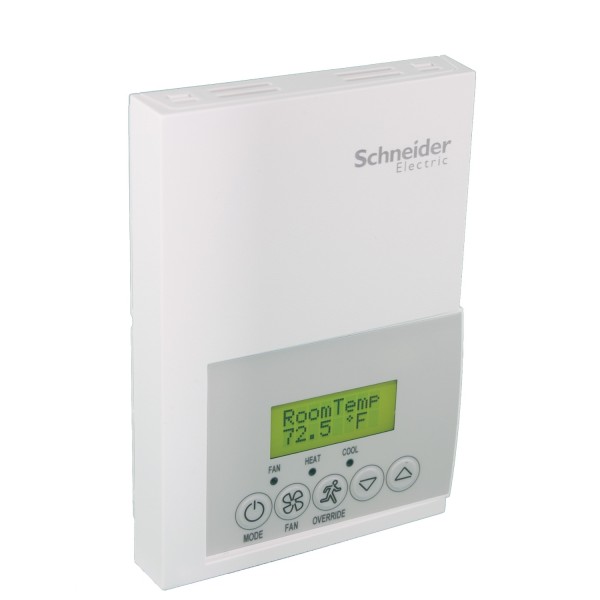

EBE - FCU controller - Network Ready - commercial - RH sensor

Details

Main
range	EcoStruxure Building Expert
product name	SE7000 Series
device short name	SE7300
product or component type	Room controller
device application	Low voltage fan coil
PIR cover	Without cover
sensor type	Single point calibrated bulk polymer RH sensor measurement range: +/- 5 % 10 kOhm T2 NTC thermistor measurement range: +/- 0.2 °F

Complementary
range compatibility	EcoStruxure Building Expert communication card EcoStruxure Building Expert sensor EcoStruxure Building Expert temperature sensor EcoStruxure Building Expert relay EcoStruxure Building Expert sensor coverplate
[Us] rated supply voltage	10...30 V AC 50/60 Hz
rated operational power in VA	2 VA
electrical insulation class	Class II
network frequency	50 Hz 60 Hz
communication port protocol	Without
function available	Humidity control
information displayed	Temperature: - 40...122 °F
Control accuracy	Humidity: +/- 5 %, 20...80 % RH (non-condensing) Temperature: +/- 0.9 °F, (at 70 °F typically calibrated)
number of inputs	1 dry contact
number of outputs	2 universal
output type	Triac
Output rating	30 V AC, 1 A (maximum) 30 V AC, 3 A (inrush)
temperature setting range	4…32 °C heating -17 °C per step 12…38 °C cooling
AWG gauge	AWG 22...AWG 18
connections - terminals	Screw terminal
width	86.87 mm
depth	29.97 mm
height	124.97 mm
net weight	0.34 kg

Environment
Setting range	Humidification: 10…90 % Dehumidification: 15…95 %
ambient air temperature for operation	-0…50 °C
ambient air temperature for storage	-30…50 °C
relative humidity	0…95 % non-condensing
standards	CSA C22.2 No 24 FCC part 15 subpart B UL 873 ICES-003
product certifications	CE C-Tick conforming to AS/NZS CISPR 22 FCC conforming to CFR 47 part 15 class A UL listed file E27734 CCN XPAX UL listed file E27734 CCN XPAX7
directives	89/336/EEC - electromagnetic compatibility

Offer Sustainability
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
