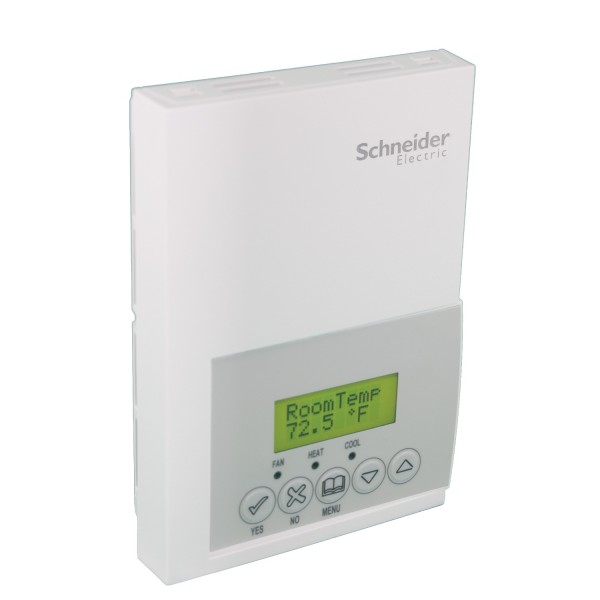

EBE - RTU controller - LonWorks - RH sensor+scheduling+PIR cover

Details

Main
range	EcoStruxure Building Expert
product name	SE7000 Series
device short name	SE7600B
product or component type	Room controller
device application	Low voltage rooftop
product specific application	2-stage heating 2-stage cooling
sensor type	Single point calibrated bulk polymer RH sensor measurement range: +/- 5 % 10 kOhm T2 NTC thermistor measurement range: +/- 0.2 °F
PIR cover	With cover

Complementary
range compatibility	communication card sensor temperature sensor relay sensor coverplate
[Us] rated supply voltage	10...30 V AC 50/60 Hz
rated operational power in VA	2 VA
electrical insulation class	Class II
network frequency	50 Hz 60 Hz
communication port protocol	Without
function available	Humidity control Scheduling
temperature setting range	4…32 °C heating -17 °C per step 12…38 °C cooling
information displayed	Temperature: - 40...122 °F
Control accuracy	Humidity: +/- 5 %, 20...80 % RH (non-condensing) Temperature: +/- 0.9 °F, (at 70 °F typically calibrated)
number of inputs	2 dry contact
number of outputs	2 universal
Output rating	For digital output: 30 V AC, 1 A (maximum) For digital output: 30 V AC, 3 A (inrush) For analog output: 0...10 V DC, <= 5 mA into >= 2 kOhm
humidification output accuracy	+/- 3 % for analog output
proportional band	For heating: adjustable P regulator by -17 °C (factory setting) For cooling: adjustable P regulator by -17 °C (factory setting)
contact operation	5 standard push-button
AWG gauge	AWG 22...AWG 18
connections - terminals	Screw terminal
width	86.87 mm
depth	29.97 mm
height	124.97 mm
net weight	0.34 kg

Environment
Setting range	Dehumidification: 30…95 %
relative humidity	0…95 %, non-condensing (operating) 0…95 %, non-condensing (storage)
ambient air temperature for operation	-0…50 °C
ambient air temperature for storage	-30…50 °C
standards	FCC part 15 subpart B UL 873 CSA C22.2 No 24 ICES-003
product certifications	FCC conforming to CFR 47 part 15 class A CE C-Tick conforming to AS/NZS CISPR 22 UL listed file E27734 CCN XPAX UL listed file E27734 CCN XPAX7
directives	89/336/EEC - electromagnetic compatibility
