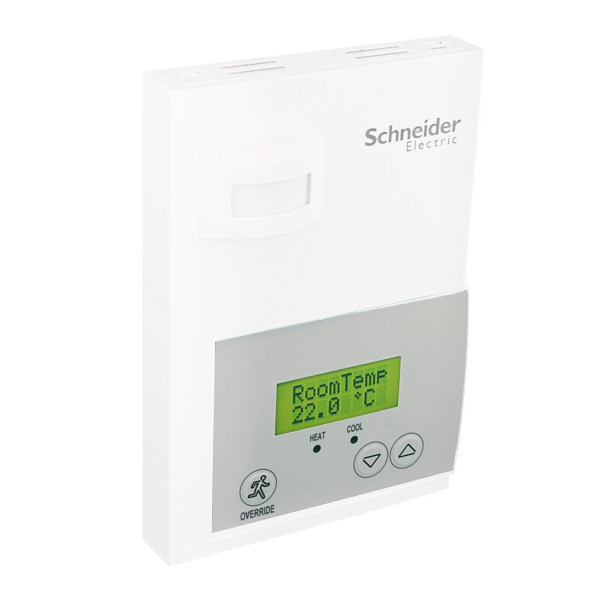

EBE - Zone controller - Zigbee - PIR cover

Details

Main
range	EcoStruxure Building Expert
product name	SE7000 Series
device short name	SE7200
product or component type	Zone controller
device application	Zone thermostat
PIR cover	With cover
sensor type	10 kOhm T2 NTC thermistor measurement range: +/- 0.2 °F

Complementary
range compatibility	EcoStruxure Building Expert communication card EcoStruxure Building Expert sensor EcoStruxure Building Expert temperature sensor EcoStruxure Building Expert relay EcoStruxure Building Expert sensor coverplate
[Us] rated supply voltage	10...30 V AC 50/60 Hz
rated operational power in VA	2 VA
electrical insulation class	Class II
network frequency	60 Hz 50 Hz
communication port protocol	Zigbee
information displayed	Temperature: - 40...122 °F
Control accuracy	Temperature: +/- 0.9 °F, (at 70 °F typically calibrated)
number of inputs	2 universal
input voltage	0…10 V DC
number of outputs	2 universal
output type	Analog
maximum number of control steps	3
Output rating	0...10 V DC, <= 5 mA into >= 2 kOhm
temperature setting range	4…32 °C heating -17 °C per step 12…38 °C cooling
proportional band	For heating: adjustable P regulator by -16 °C (factory settting) For cooling: adjustable P regulator by -16 °C (factory settting)
AWG gauge	AWG 22...AWG 18
connections - terminals	Screw terminal
width	86.87 mm
depth	29.97 mm
height	124.97 mm
net weight	0.34 kg

Environment
ambient air temperature for operation	-0…50 °C
ambient air temperature for storage	-30…50 °C
relative humidity	0…95 % non-condensing
standards	ICES-003 UL 873 FCC part 15 subpart C CSA C22.2 No 24
product certifications	CE C-Tick conforming to AS/NZS CISPR 22 UL listed file E27734 CCN XPAX UL listed file E27734 CCN XPAX7 FCC
directives	89/336/EEC - electromagnetic compatibility
