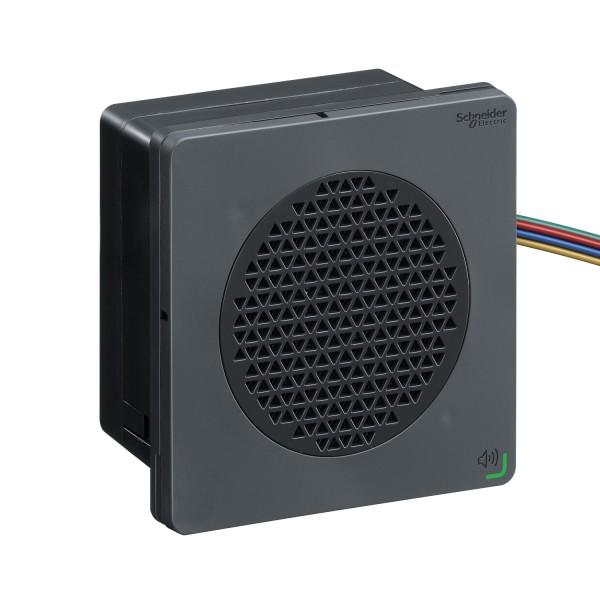

Editable voice alarms, black, mounting 96 mm DIN rail, NPN, 100...230V AC

Details

Main
range of product	Harmony XVS
product or component type	Editable electronic alarm
beacon or indicator bank unit type	Sound unit
device short name	XVSV

Complementary
colour	Dark grey
input type	Bit 6 channel input Binary 63 channel input
assembly style	Ready assembled
material	PC (polycarbonate) body PC (polycarbonate) back cover TPE (thermoplastic elastomer) front panel NBR (nitrile butadiene rubber)
net weight	0,287 kg
marking	CE
overvoltage category	Class II EN/IEC 61140
mounting support	96 mm DIN rail
[Us] rated supply voltage	100...230 V AC
[Ue] rated operational voltage	90...264 V AC
inrush current	30 A
associated fuse rating	1 A
[Uimp] rated impulse withstand voltage	1 kV
power consumption in W	10 W
current consumption	100 mA 100 V AC
clamping connection capacity	<= 1 x 1.5 mm²
device application	Subway Packaging Printing
mounting diameter	105 mm
width	105 mm
height	105 mm
depth	50,1 mm

Environment
discrete output type	NPN
signalling type	Adjustable vocal sound
protective treatment	TC
ambient air temperature for storage	-20…60 °C
ambient air temperature for operation	0…50 °C
relative humidity	35…85 % without condensation
vibration resistance	7 gn
IP degree of protection	Panel mounted IP65 EN/IEC 60529 Wall mounted IP20
noise level	0…97 dB stop or suppress)1 m

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
