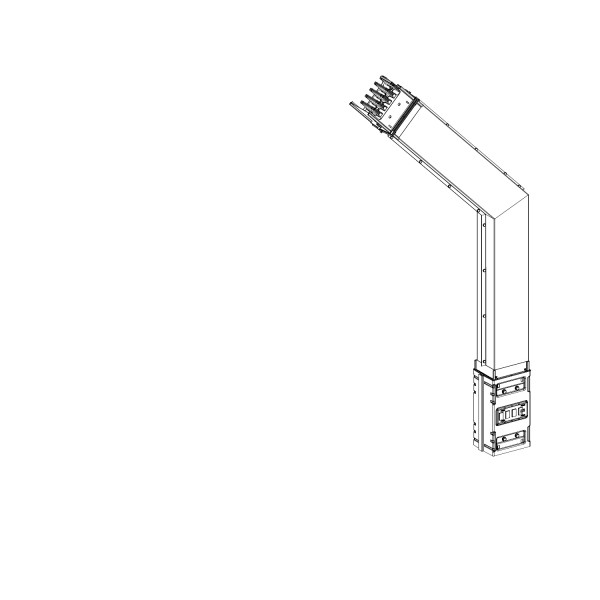

ELBOW 630 A MADE TO MESURE

Tootekood: KSA630DLF4B

Quick Overview

Saadavus: Tellimisel

2 379,34 € (ilma KM-ta)

Qty:

Main
range of product	Canalis
product name	KS
product or component type	Elbow
busbar description	Standard made to measure
bar material	Aluminium
device application	Change direction
[Ie] rated operational current	500 A 35 °C
direction change type	1 flat downward -

Complementary
[Ue] rated operational voltage	230...690 V
network frequency	50/60 Hz
operating angle	90…180 °
mounting location	On trunking
mounting position	Any position
electrical connection	Lubricated sliding contact
mounting mode	By screws
width	146 mm
depth	111 mm
height	290…785 mm
net weight	4 kg

Environment
standards	IEC 61439-6 IEC 60439-2

Contractual warranty
Garantii	18 months
