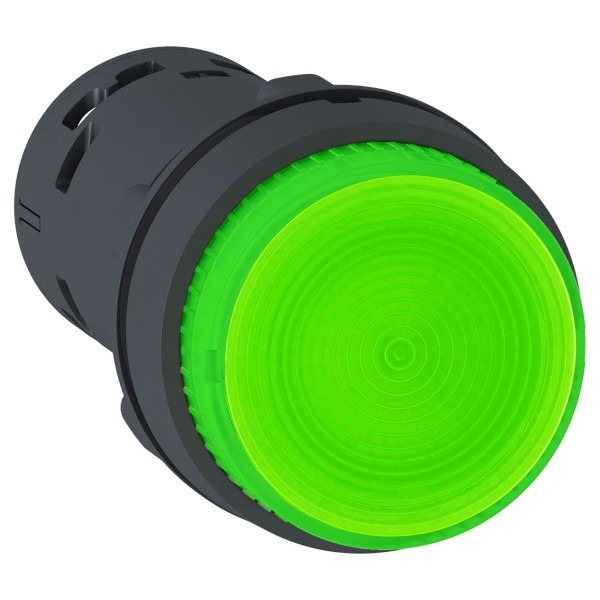

Monolithic illuminated push button, plastic, green, Ø22, integral LED, spring return, 230…240 V AC, 1 NO

Details

Main
range of product	Harmony XB7
product or component type	Illuminated push-button
device short name	XB7
mounting diameter	22 mm
sale per indivisible quantity	10
IP degree of protection	IP20 IEC 60529 rear face) IP65 IEC 60529 front face)
shape of signaling unit head	Round
type of operator	spring return
operator profile	Green projecting, unmarked
contacts type and composition	1 NO
connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end EN/IEC 60947-1
light source	LED
bulb base	Integral LED
[Us] rated supply voltage	230 V AC 50/60 Hz
device presentation	Monolithic product

Complementary
CAD overall width	29 mm
CAD overall height	29 mm
CAD overall depth	57,5 mm
terminals description ISO n°1	(13-14)NO
net weight	0,023 kg
device mounting	Fixing hole 22,5 mm 22.3 +0.4/0 EN/IEC 60947-1
fixing center	>= 30 x 40 mm support panel) metal 1…6 mm >= 30 x 40 mm support panel) plastic 2…6 mm
fixing mode	Fixing nut beneath head 2…2,4 N.m
contact operation	Slow-break
positive opening	With (only NO)
mechanical durability	300000 cycles
tightening torque	0,8…1,2 N.m EN 60947-1
shape of screw head	Cross JIS No 1 Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
short-circuit protection	4 A cartridge fuse gG EN/IEC 60947-5-1
[Ui] rated insulation voltage	250 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage	4 kV EN/IEC 60947-1
[Ie] rated operational current	0,1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 0,22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 0,3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 0,6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
electrical durability	1000000 cycles, DC-13, 0,3 A 24 V 216000 cyc/mn 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0,03 A 230 V 216000 cyc/mn 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0,09 A 240 V 108000 cyc/mn 0,5 EN/IEC 60947-5-1 appendix C
electrical reliability	Λ <= 10exp(-6) 17 V 5 mA EN/IEC 60947-5-4
signalling type	Steady
supply voltage limits	195…264 V AC
current consumption	22...27 mA
service life	70000 h at rated voltage and 25 °C

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…70 °C
electrical shock protection class	Class II IEC 61140
NEMA degree of protection	NEMA 12 UL 50 E
standards	JIS C8201-5-1 EN/IEC 60947-1 UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1
product certifications	GOST CCC
vibration resistance	5 gn 2…500 Hz)IEC 60068-2-6
shock resistance	50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration
electromagnetic emission	Class B EN 55011

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
