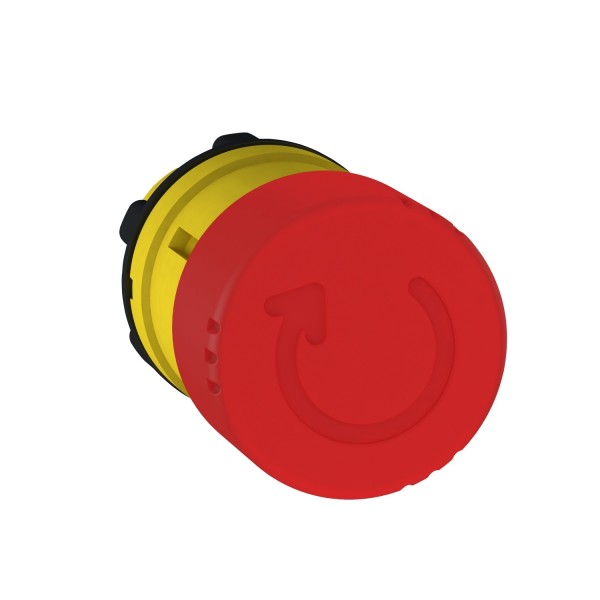

red Ø30 Emergency stop, switching off head Ø22 trigger and latching turn release

Ülevaaded: 0

Tootekood: ZB5AS834

Quick Overview

Saadavus: Tellimisel

7,15 € (ilma KM-ta)

Details

Main
range of product
Harmony XB5
product or component type
Head
product destination
Emergency stop push-button
device short name
ZB5
bezel material
Dark grey plastic
head type
Standard
mounting diameter
22 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
type of operator
trigger action and mechanical latching
reset
Turn to release
operator profile
Red mushroom Ø 30 mm, unmarked
device presentation
Basic element
Complementary
CAD overall width
30 mm
CAD overall height
30 mm
CAD overall depth
57 mm
net weight
0,042 kg
mechanical durability
300000 cycles
station name
XALD 1...5 cut-outs
XALK 1...5 cut-outs
electrical composition code
C7 4 single front mounting
C8 4 single and double front mounting
C11 3 single front mounting
C15 1 single front mounting
SF1 3 single front mounting
SR1 3 single rear mounting
C10 4 single and double front mounting
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529
IP67
IP69
IP69K
NEMA degree of protection
NEMA 13
NEMA 4X
resistance to high pressure washer
7000000 Pa 55 °C 0.1 m
IK degree of protection
IK03 IEC 50102
standards
IEC 60364-5-53
EN/IEC 60947-5-5
GB 14048.5
JIS C8201-5-1
EN/IEC 60947-5-4
EN/IEC 60947-1
EN/ISO 13850
UL 508
EN/IEC 60204-1
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-1
product certifications
RINA
CSA
GL
BV
LROS (Lloyds register of shipping)
DNV
UL listed
vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
