Triple-headed push button, plastic, Ø22, marked, 1 green flush I + 1 red projecting STOP + 1 green flush II, 2 NO + 1 NC

Product was successfully added to your shopping cart.

Mushroom push button head Ø40, metal, yellow, Ø22, spring return

Mushroom push button head Ø40, plastic, yellow, Ø22, spring return

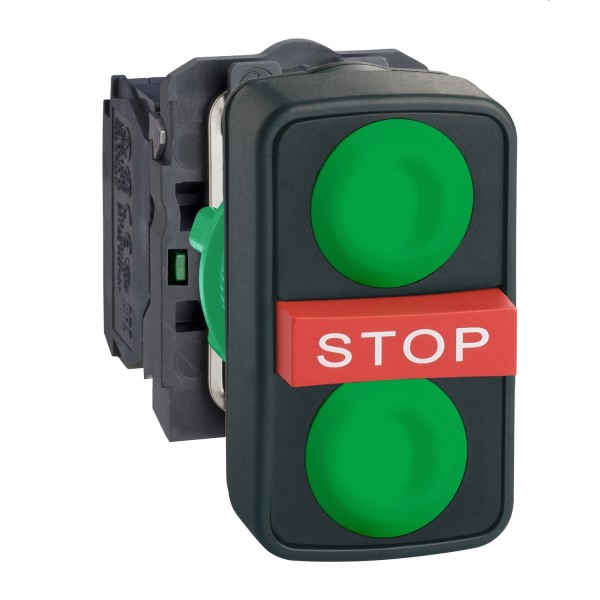

Triple-headed push button, plastic, Ø22, marked, 1 green flush I + 1 red projecting STOP + 1 green flush II, 2 NO + 1 NC

Tootekood: XB5AA731327

Quick Overview

Saadavus: Tellimisel

32,01 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XB5
product or component type	Triple-headed push-button
device short name	XB5
bezel material	Dark grey plastic
fixing collar material	Plastic
head type	Standard
mounting diameter	22 mm
shape of signaling unit head	Rectangular
type of operator	spring return
operator profile	2 flush - 1 central projecting STOP push-buttons
operators description	Green ''I'' - green ''II'' - red ''STOP''
contacts type and composition	2 NO + 1 NC
contact operation	Slow-break
connections - terminals	Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 Spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
device presentation	Complete product

Complementary
net weight	0,063 kg
resistance to high pressure washer	7000000 Pa 55 °C 0.1 m
colour of marking	White marking when green, red or black caps Black marking when white caps
operator profile	Red projecting, STOP white) Green flush, II white)
contacts usage	Standard contacts
positive opening	With EN/IEC 60947-5-1 appendix K
operating travel	1,5 mm NC changing electrical state) 2,6 mm NO changing electrical state) 4,3 mm total travel)
operating force	3,5 N NC changing electrical state 3,8 N NO changing electrical state
mechanical durability	1000000 cycles
tightening torque	0,8…1,2 N.m EN 60947-1
shape of screw head	Cross JIS No 1 Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
contacts material	Silver alloy (Ag/Ni)
short-circuit protection	10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current	10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage	600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage	6 kV EN 60947-1
[Ie] rated operational current	3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0,1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0,27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0,55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1,2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
electrical durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0,2 A 110 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0,5 A 24 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
electrical reliability	Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Environment
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…70 °C
electrical shock protection class	Class II IEC 61140
IP degree of protection	IP67 IEC 60529 IP69 IEC 60529 IP69K
NEMA degree of protection	NEMA 13 NEMA 4X
IK degree of protection	IK05 IEC 50102
standards	EN/IEC 60947-5-4 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 UL 508 JIS C8201-1
product certifications	LROS (Lloyds register of shipping) UL listed RINA BV DNV GL CSA
vibration resistance	5 gn 2…500 Hz)IEC 60068-2-6
shock resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
