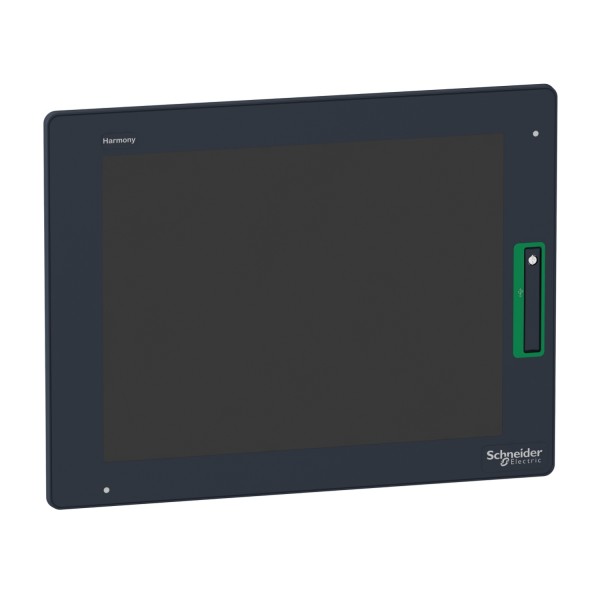

12.1 Touch Smart WLAN Display XGA

Details

Complementary
touchscreen resolution	1024 x 1024
communication port protocol	WLAN at 2.4 GHz
bandwidth	20 MHz
operating mode	Infrastructure
transmission rate	<= 11 Mbit/s conforming to IEEE 802.11b <= 54 Mbit/s conforming to IEEE 802.11g <= 72.2 Mbit/s conforming to IEEE 802.11n
maximum sensing distance	30 m depending on surrounding environment
method of access	Client mode: 1…11, North America Client mode: 1…13, Japan Client mode: 1…13, Europe Client mode: 1…13, Korea Client mode: 1…13, China Client mode: 1…11, Taiwan Access point mode: 1…11
encryption protocol	WEP 128 AES (Advanced Encryption Standard) TKIP
network security encrypting	WPA Open WPA2
type of license	10 clients
function available	Brightness sensor
[Us] rated supply voltage	12...24 V DC power supply
supply voltage limits	10.8…28.8 V
power consumption in W	23 W
display size	12.1 inch
display type	Colour TFT LCD
display resolution	1024 x 768 pixels XGA
display colour	16 million colours
backlight lifespan	50000 hours
touch panel	Multi touch analogue resistive
type of installation	Indoor installation
type of cooling	Natural convection
inrush current	30 A
cut-out dimensions	301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
width	315 mm
height	241 mm
depth	67 mm
net weight	3 kg

Environment
IP degree of protection	IP66 front panel: IP67 front panel:
NEMA degree of protection	NEMA 4X front panel
standards	UL 508 ANSI/ISA 12-12-01 Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 IEC 61132-2
product certifications	CE CULus KC RCM
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-20…60 °C
pollution degree	2
relative humidity	10…90 % non-condensing
operating altitude	2000 m
vibration resistance	3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2 9.8 m/s² (f = 9…150 Hz) conforming to EN/IEC 61131-2
shock resistance	147 m/s² conforming to EN/IEC 61131-2
electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
