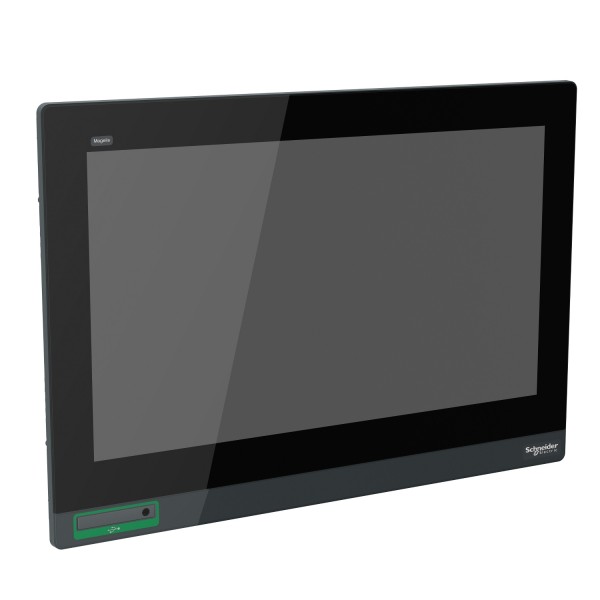

19W Touch Smart Display FWXGA

Details

Complementary
pixel resolution	1366 x 768
touchscreen resolution	2048 x 2048
function available	Brightness sensor
[Us] rated supply voltage	12...24 V DC power supply
supply voltage limits	10,8…28,8 V
power consumption in W	19 W
display size	18.5 inch
display type	Colour TFT LCD
display resolution	1366 x 768 pixels FWXGA
display colour	16 million colours
backlight lifespan	50000 hours
touch panel	Multi-touch projected capactive technology (PCT), 50000000 cycles
type of installation	Indoor installation
type of cooling	Natural convection
inrush current	30 A
cut-out dimensions	465 (+ 1/- 0) x 319 (+ 1/- 0) mm
width	483 mm
height	337 mm
depth	69 mm
net weight	6,8 kg

Environment
IP degree of protection	Front panel IP66 Front panel IP67
NEMA degree of protection	NEMA 4X front panel
standards	UL 508 ANSI/ISA 12-12-01 Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 IEC 61132-2
product certifications	RCM CULus CE KC
ambient air temperature for operation	0…55 °C EN 61131-2
ambient air temperature for storage	-20…60 °C
pollution degree	2
relative humidity	10…90 % non-condensing
operating altitude	2000 m
vibration resistance	3.5 mm constant amplitude 5…9 Hz) EN/IEC 61131-2 9.8 m/s² 9…150 Hz) EN/IEC 61131-2
shock resistance	147 m/s² EN/IEC 61131-2
electromagnetic compatibility	Electrostatic discharge immunity testlevel 3 EN/IEC 61000-4-2

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
