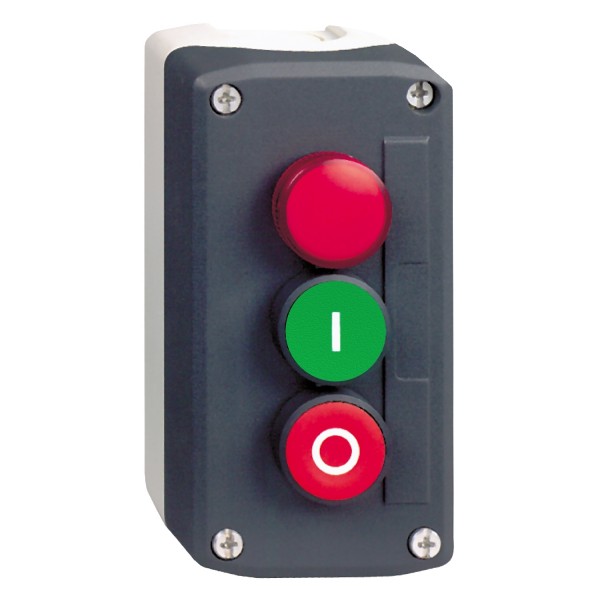

Control station, plastic, dark grey lid, 1 red pilot light, 1 green flush, 1 red flush push buttons Ø22

Ülevaaded: 0

Tootekood: XALD363B

Quick Overview

Saadavus: Tellimisel

33,83 € (ilma KM-ta)

Details

Main
range of product
Harmony XALD
product or component type
Complete control station
device short name
XALD
product destination
For XB5 Ø 22 mm control and signalling units
control station application
Start-Stop function
colour of base of enclosure
Light grey RAL 7035)
colour of cover
Dark grey RAL 7016)
material
Polycarbonate
operator profile
2 flush push-buttons - 1 central pilot light
operators description
Green ''I'' 1 NO - red ''O'' 1 NC
control station composition
1 flush push-button, green 1 NO I
1 flush push-button, red 1 NC O
1 pilot light
marking location
Marking on push-button
contact operation
Slow-break
light source
Integrated and protected LED
light source colour
Red
[Us] rated supply voltage
24 V AC/DC
Complementary
cable entry
2 knock-outs for cable entry 14 mm
2 knock-outs for Pg 13 cable gland and ISO M20 12 mm
net weight
0,261 kg
resistance to high pressure washer
7000000 Pa 55 °C 0.1 m
colour of marking
White marking when green, red or black caps
Black marking when white caps
positive opening
With EN/IEC 60947-5-1 appendix K
operating travel
1,5 mm NC changing electrical state)
2,6 mm NO changing electrical state)
4,3 mm total travel)
operating force
3,5 N NC changing electrical state
3,8 N NO changing electrical state
mechanical durability
10000000 cycles
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
tightening torque
0,8…1,2 N.m EN/IEC 60947-1
shape of screw head
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
contacts material
Silver alloy (Ag/Ni)
short-circuit protection
10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current
10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage
600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV EN/IEC 60947-1
[Ie] rated operational current
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
1,2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
0,55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
0,27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
0,1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
electrical durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0,2 A 110 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0,5 A 24 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
electrical reliability
Λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4
Λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
signalling type
Steady
supply voltage limits
19,2…30 V DC
21,6…26,4 V AC
current consumption
18 mA
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV IEC 61000-4-5
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529
IP67
IP69
IP69K
NEMA degree of protection
NEMA 13
NEMA 4X
IK degree of protection
IK05 EN 50102
standards
EN/IEC 60947-5-4
CSA C22.2 No 14
UL 508
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C8201-5-1
EN/IEC 60947-1
JIS C8201-1
vibration resistance
5 gn 12…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients
2 kV IEC 61000-4-4
resistance to electromagnetic fields
10 V/m IEC 61000-4-3
resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2
electromagnetic emission
Class B IEC 55011
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
