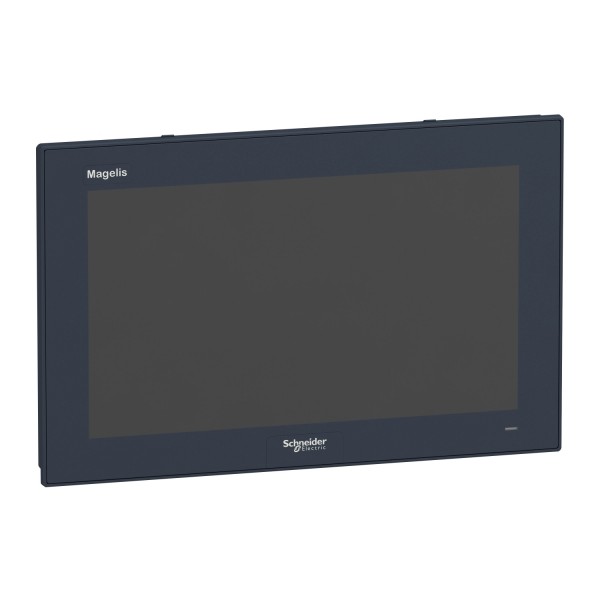

Display PC Wide 15'' multi-touch for HMIBM

Details

Complementary
local signalling	Status LED
view angle horizontal x vertical	150 x 140°
contrast ratio	500:1
pixel resolution	1024 x 1024
touchscreen resolution	4096 x 4096
function available	Operate with water on screen
[Us] rated supply voltage	24 V DC power supply 100...240 V AC power supply 47...63 Hz
supply voltage limits	18…36 V DC
power consumption in W	46.1 W (typical) with Box PC HMIBMP 54.5 W (maximum) with Box PC HMIBMP 40.9 W (typical) with Box PC HMIBMU 49.5 W (maximum) with Box PC HMIBMU
display size	15.6 inch
display type	Colour TFT LCD LED
display resolution	1366 x 768 pixels WHD FWXGA
display colour	16777216 colors
luminance	300 cd/m²
backlight lifespan	50000 hours at 25 °C
touch panel	Multi-touch projected capactive technology (PCT)
type of installation	Indoor installation
inrush current	8.9 A
width	419.7 mm
height	269 mm
depth	28 mm enclosure: 7 mm
net weight	4.3 kg

Environment
IP degree of protection	IP66
NEMA degree of protection	NEMA 4X
standards	Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 UL 6110-2-201 Class I division 2 ANSI/ISA 12-12-01
product certifications	IEC-Ex C-Tick EAC Marine GL Bridge ATEX CE
ambient air temperature for operation	0…55 °C
ambient air temperature for storage	-30…70 °C
pollution degree	2
relative humidity	10…95 % non-condensing
operating altitude	2000 m
vibration resistance	1 gn (f = 5…500 Hz)HDD 2 gn (f = 5…500 Hz)SSD 2 gn (f = 5…500 Hz)Cfast card

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
