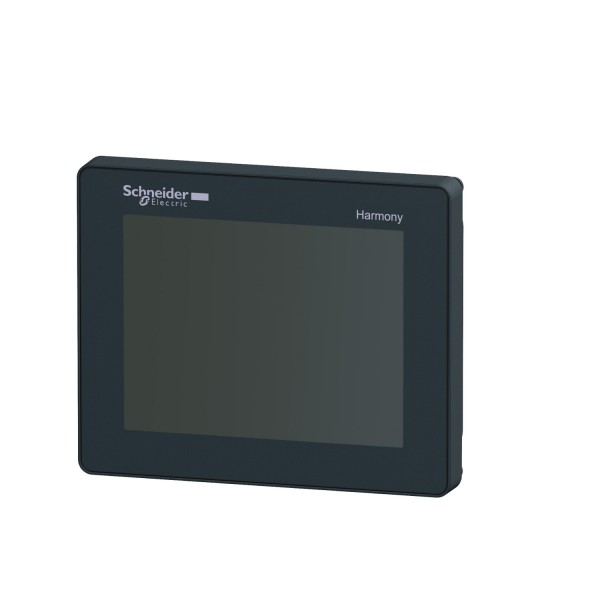

touch panel screen 3''5 Color

Details

Complementary
display size	3.5 inch
display type	QVGA TFT colour touchscreen
display colour	65536 colours
display resolution	320 x 240 pixels QVGA
touch panel	Analogue
backlight lifespan	50000 hours
brightness	16 levels
character font	Chinese (simplified Chinese) Japanese (ANK, Kanji) ASCII Korean Taiwanese (traditional Chinese)
[Us] rated supply voltage	24 V DC
supply	External source
supply voltage limits	20,4…28,8 V
inrush current	30 A
power consumption in W	6,5 W
number of pages	Limited by internal memory capacity
processor frequency	333 MHz
memory description	Application memory 16 MB Back up of data 64 kB
integrated connection type	1 USB 2.0 type mini B 1 USB 2.0 type A COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s) power supply - removable screw terminal block
realtime clock	Access to the PLC real-time clock
downloadable protocols	Modbus TCP/IP Modbus Uni-TE Third party protocols
fixing mode	Ø 22 mm hole
enclosure material	PC/PBT
marking	With Schneider logo CE
height	98,15 mm
width	118 mm
depth	55,3 mm

Environment
immunity to microbreaks	10 ms
standards	IEC 61000-6-2 EN 61131-2 UL 1604 UL 508 FCC Class A
product certifications	CULus C-Tick Marine UL class 1 Div2 T4A ou T5
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-20…60 °C
relative humidity	0…85 % without condensation
operating altitude	<= 2000 m
IP degree of protection	IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel)
NEMA degree of protection	NEMA 4X front panel indoor use)
shock resistance	15 gn 11 msIEC 60068-2-27
vibration resistance	+/- 3.5 mm 5…9 Hz) IEC 60068-2-6 1 gn 9…150 Hz) IEC 60068-2-6
resistance to electromagnetic fields	10 V/m IEC 61000-4-3

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
