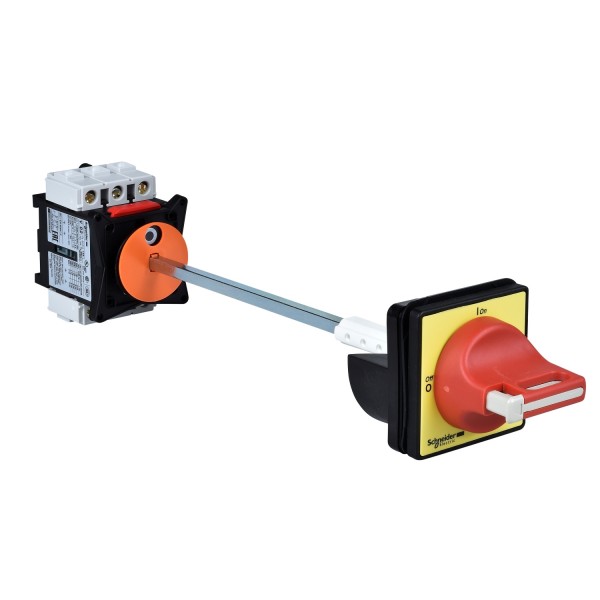

TeSys Vario - emergency stop switch disconnector - 25 A - back of enclosure - Pöördlülitid ja Turvalülitid - Juhtimine ja alarm

Details

Main
range	TeSys
product name	TeSys VARIO
device short name	VCCF
product or component type	Emergency stop switch disconnector
performance level	High performance
poles description	3P
contacts type and composition	3 NO
network type	AC DC
control type	Rotary handle
rotary handle mounting style	Extended
handle colour	Red
handle front plate colour	Yellow
suitability for isolation	Yes

Complementary
rotary handle padlocking	1 to 3 padlocks 4…8 mm
marking	0 - 1
mounting support	Handle door Switch symmetrical rail Switch plate
fixing mode	By 4 screws handle By clips switch By screws switch
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ith] conventional free air thermal current	25 A
[Ithe] conventional enclosed thermal current	20 A
[Ie] rated operational current	14,5 A AC-23 Ue: 400 V
rated operational power in W	11 kW 500 V AC-23A) 11 kW 690 V AC-3) 15 kW 690 V AC-23A) 4 kW 230...240 V AC-3) 5,5 kW 400...415 V AC-3) 7,5 kW 500 V AC-3) 5,5 kW 230...240 V AC-23A) 7,5 kW 400...415 V AC-23A)
intermittent duty class	30
Making capacity ( I Rms)	250 A 400 V AC-21A 250 A 400 V AC-22A 250 A 400 V AC-23A
[Icm] rated short-circuit making capacity	1 kA 400 V at Ipeak
[Icw] rated short-time withstand Rms current	300 A 400 V 1 s
rated conditional short-circuit current	10 kA 400 V 25 A aM 10 kA 400 V 25 A gG
breaking capacity	200 A 400 V AC-21A) 200 A 400 V AC-22A) 200 A 400 V AC-23A)
device composition	Shaft extension Switch Handle
mechanical durability	100000 cycles
electrical durability	100000 cycles AC-21 30000 cycles DC-1...5
connections - terminals	Power circuit screw clamp terminals 10 mm² solid Power circuit screw clamp terminals 6 mm² flexible - with cable end
tightening torque	Power circuit 2,1 N.m screw clamp terminals
handle front plate dimension	60 x 60 mm
height	74 mm
width	60 mm
net weight	0,527 kg

Environment
standards	IEC 60947-3
product certifications	UL CSA CCC GL
protective treatment	TC
IP degree of protection	IP20 IEC 60529 IP65
mechanical robustness	Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27
ambient air temperature for operation	-20…50 °C
fire resistance	960 °C IEC 60695-2-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
