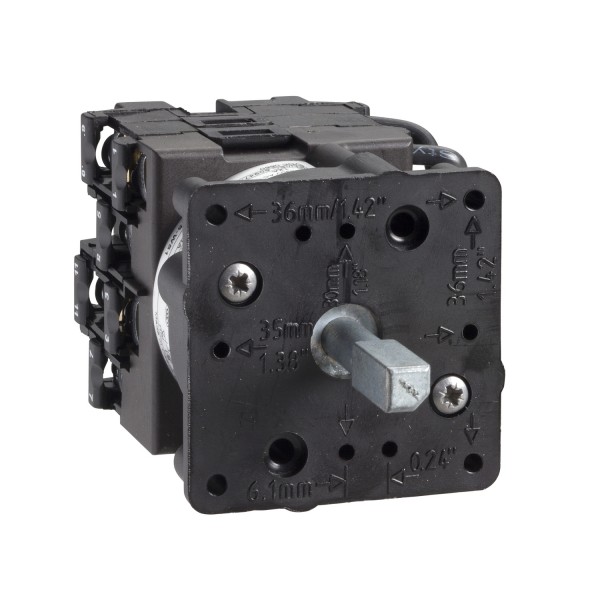

body for voltmeter switch - 3L and 3L-N - 45° - 12 A - screw mounting

Ülevaaded: 0

Tootekood: K1F027ML

Quick Overview

Saadavus: Ei saa enam tellida

19,39 € (ilma KM-ta)

Details

Main
range of product
Harmony K
product or component type
Cam switch body
component name
K1
[Ith] conventional free air thermal current
12 A
sub-assembly composition
Contact blocks + fixing plate
cam switch function
Voltmeter switch
type of measurement
Between 3 phases and between each of the 3 phases and neutral
off position
With Off position
switching positions
Left: 0° - 315° - 270° - 225°
Right: 0° - 45° - 90° - 135°
product mounting
Front mounting
fixing mode
Multifixing
bezel material
Plastic
Complementary
switching angle
45 °
[Ui] rated insulation voltage
690 V (pollution degree 3) conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current
10 A
rated operational power in W
10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3
1100 W AC-3, 230 V 3 phases conforming to IEC 947-3
1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3
1500 W AC-3, 400 V 1 phase conforming to IEC 947-3
1500 W AC-3, 400 V 3 phases conforming to IEC 947-3
1500 W AC-3, 500 V 3 phases conforming to IEC 947-3
1500 W AC-3, 690 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3
4800 W AC-21, 230 V 3 phases conforming to IEC 947-3
600 W AC-3, 230 V 1 phase conforming to IEC 947-3
8300 W AC-21, 400 V 3 phases conforming to IEC 947-3
[Ie] rated operational current AC
1 A at 500 V AC-15 conforming to IEC 947-5-1
2 A at 400 V AC-15 conforming to IEC 947-5-1
3 A at 230 V AC-15 conforming to IEC 947-5-1
1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3
3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3
3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3
4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3
4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3
5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3
electrical durability
1000000 cycles AC-15
1000000 cycles AC-21
500000 cycles AC-23
500000 cycles AC-3
maximum operating rate
2.5 cyc/mn AC-21
2.5 cyc/mn AC-23
2.5 cyc/mn AC-3
8.333 cyc/mn AC-15
short-circuit current
10000 A
short-circuit protection
16 A cartridge fuse, type gG
[Uimp] rated impulse withstand voltage
4 kV in isolating function
6 kV conforming to IEC 947-1
contact operation
Slow-break
positive opening
With
electrical connection
Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
mechanical durability
1000000 cycles
net weight
0.126 kg
Environment
standards
CENELEC EN 50013
EN 60947-3 for power circuit
EN 60947-5-1 for control circuit
IEC 60947-3 for power circuit
IEC 60947-5-1 for control circuit
product certifications
CSA 240 V 1 hp 1 phase
CSA 240 V 3 hp 3 phases 2 pole(s)
UL 240 V 1 hp 3 phases
UL 240 V 0.33 hp 1 phase 2 pole(s)
protective treatment
TC
ambient air temperature for operation
-25…55 °C
ambient air temperature for storage
-40…70 °C
shock resistance
30 gn conforming to IEC 68-2-27
vibration resistance
5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
electrical shock protection class
Class II conforming to IEC 536
Class II conforming to NF C 20-030
Offer Sustainability
Sustainable offer status
Green Premium product
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
