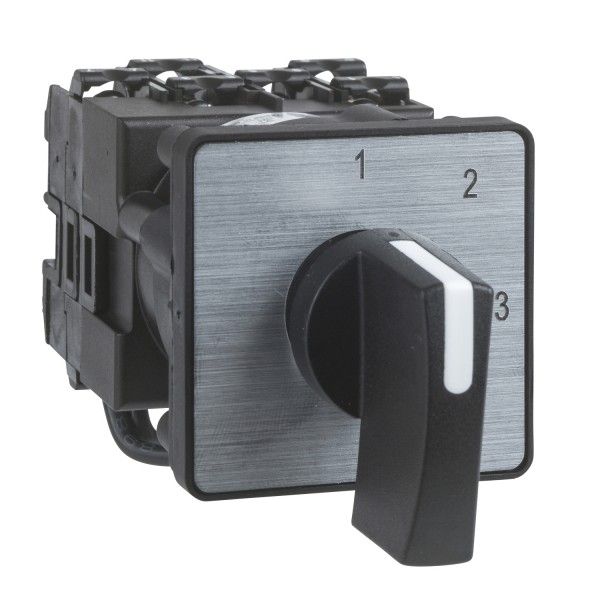

Cam ammeter switch, 3 circuits, 90°, 12 A, screw mounting

Tootekood: K1F003MLH

Quick Overview

Saadavus: Tellimisel

28,50 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony K
product or component type	Complete cam switch
component name	K1
[Ith] conventional free air thermal current	12 A
product mounting	Front mounting
fixing mode	Multifixing
cam switch head type	With front plate 45 x 45 mm
type of operator	Black handle 35 mm
rotary handle padlocking	Without
presentation of legend	With metallic, 0 - L1 - L2 - L3 black
cam switch function	Ammeter switch
return	Without
type of measurement	For 3 circuits
off position	With Off position
switching positions	Right: 0° - 90° - 180° - 270°
IP degree of protection	IP40 IEC 529 IP40 NF C 20-010

Complementary
switching angle	90 °
[Ui] rated insulation voltage	690 V 3)IEC 60947-1
[Ithe] conventional enclosed thermal current	10 A
rated operational power in W	10500 W AC-21, 500...660 V 3 phases IEC 60947-3 1100 W AC-3, 230 V 3 phases IEC 60947-3 1500 W AC-23A, 230 V 3 phases IEC 60947-3 1500 W AC-3, 400 V 1 phase IEC 60947-3 1500 W AC-3, 400 V 3 phases IEC 60947-3 1500 W AC-3, 500 V 3 phases IEC 60947-3 1500 W AC-3, 690 V 3 phases IEC 60947-3 2200 W AC-23A, 400 V 3 phases IEC 60947-3 2200 W AC-23A, 500 V 3 phases IEC 60947-3 2200 W AC-23A, 690 V 3 phases IEC 60947-3 4800 W AC-21, 230 V 3 phases IEC 60947-3 600 W AC-3, 230 V 1 phase IEC 60947-3 8300 W AC-21, 400 V 3 phases IEC 60947-3
[Ie] rated operational current AC	1 A 500 V AC-15 IEC 60947-5-1 2 A 400 V AC-15 IEC 60947-5-1 3 A 230 V AC-15 IEC 60947-5-1 1,8 A 690 V AC-3 3 phases IEC 60947-3 2,8 A 500 V AC-3 3 phases IEC 60947-3 2,8 A 690 V AC-23A 3 phases IEC 60947-3 3,3 A 400 V AC-3 3 phases IEC 60947-3 3,8 A 500 V AC-23A 3 phases IEC 60947-3 4,6 A 230 V AC-3 3 phases IEC 60947-3 4,8 A 400 V AC-23A 3 phases IEC 60947-3 5,6 A 230 V AC-23A 3 phases IEC 60947-3
electrical durability	1000000 cycles AC-15 1000000 cycles AC-21 500000 cycles AC-23 500000 cycles AC-3
maximum operating rate	2,5 cyc/mn AC-21 2,5 cyc/mn AC-23 2,5 cyc/mn AC-3 8,333 cyc/mn AC-15
short-circuit current	10000 A
short-circuit protection	16 A cartridge fuse gG
[Uimp] rated impulse withstand voltage	4 kV in isolating function 6 kV IEC 60947-1
contact operation	Slow-break
positive opening	With
electrical connection	Captive screw clamp terminals flexible 2 x 1.5 mm² Captive screw clamp terminals solid 1 x 2.5 mm²
mechanical durability	1000000 cycles
CAD overall width	45 mm
CAD overall height	45 mm
CAD overall depth	97 mm
net weight	0,17 kg

Environment
standards	CENELEC EN 50013 EN/IEC 60947-3 power circuit EN/IEC 60947-5-1 control circuit
product certifications	CSA 240 V 1 hp 1 phase CSA 240 V 3 hp 3 phases 2 UL 240 V 1 hp 3 phases UL 240 V 0,33 hp 1 phase 2
protective treatment	TC
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
shock resistance	30 gn IEC 68-2-27
vibration resistance	5 gn 10…150 Hz)IEC 68-2-6
electrical shock protection class	Class II IEC 536 Class II NF C 20-030

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
