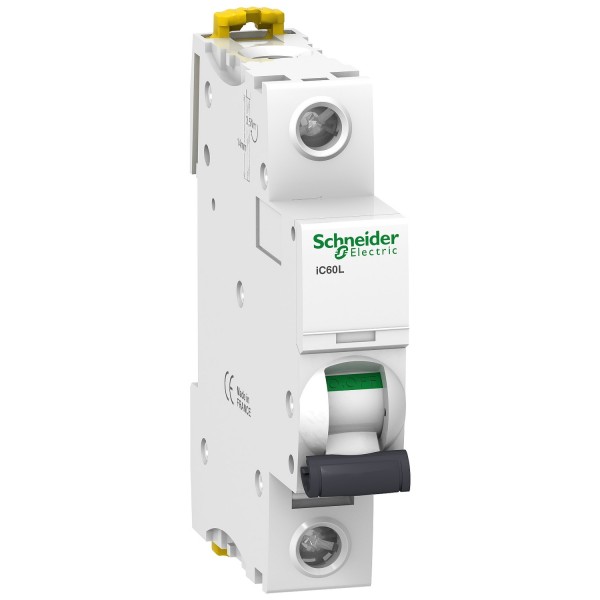

iC60L - miniatuurne kaitselüliti - 1P - 1A - C kõver - Kaitselülitid ja lahklülitid - Kilbitarvikud

Details

Main
device application	Distribution
range	Acti 9
product name	Acti 9 iC60
product or component type	Miniature circuit-breaker
device short name	IC60L
poles description	1P
number of protected poles	1
[In] rated current	1 A
network type	AC DC
trip unit technology	Thermal-magnetic
curve code	C
breaking capacity	15000 A Icn 230 V AC 50/60 Hz EN/IEC 60898-1 100 kA Icu 12...60 V AC 50/60 Hz EN/IEC 60947-2 100 kA Icu 220...240 V AC 50/60 Hz EN/IEC 60947-2 100 kA Icu 100...133 V AC 50/60 Hz EN/IEC 60947-2 20 kA Icu 60...72 V DC EN/IEC 60947-2 25 kA Icu 12...60 V DC EN/IEC 60947-2
utilisation category	Category A EN 60947-2 Category A IEC 60947-2
suitability for isolation	Yes EN 60898-1 Yes EN 60947-2 Yes IEC 60898-1 Yes IEC 60947-2
standards	EN 60947-2 EN 60898-1 IEC 60947-2 IEC 60898-1

Complementary
network frequency	50/60 Hz
magnetic tripping limit	8 x In +/- 20 %
[Ics] rated service breaking capacity	100 kA 100 % EN 60947-2 - 12...60 V AC 50/60 Hz 100 kA 100 % EN 60947-2 - 220...240 V AC 50/60 Hz 100 kA 100 % IEC 60947-2 - 12...60 V AC 50/60 Hz 100 kA 100 % IEC 60947-2 - 220...240 V AC 50/60 Hz 100 kA 100 % EN 60947-2 - 100...133 V AC 50/60 Hz 100 kA 100 % IEC 60947-2 - 100...133 V AC 50/60 Hz 7500 A 50 % EN 60898-1 - 230 V AC 50/60 Hz 7500 A 50 % IEC 60898-1 - 230 V AC 50/60 Hz 20 kA 100 % EN 60947-2 - 72 V DC 20 kA 100 % IEC 60947-2 - 72 V DC 25 kA 100 % EN 60947-2 - 12...60 V DC 25 kA 100 % IEC 60947-2 - 12...60 V DC
limitation class	3 EN 60898-1 3 IEC 60898-1
[Ui] rated insulation voltage	500 V AC 50/60 Hz EN 60947-2 500 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kVEN 60947-2 6 kVIEC 60947-2
contact position indicator	Yes
control type	Toggle
local signalling	Trip indicator
mounting mode	Fixed
mounting support	DIN rail
comb busbar and distribution block compatibility	Top or bottom YES
9 mm pitches	2
height	85 mm
width	18 mm
depth	78,5 mm
net weight	0,215 kg
colour	White
mechanical durability	20000 cycles
electrical durability	10000 cycles
connections - terminals	Single terminal top or bottom) 1…25 mm² rigid Single terminal top or bottom) 1…16 mm² flexible
wire stripping length	14 mm top or bottom
tightening torque	2 N.m top or bottom
earth-leakage protection	Without

Environment
IP degree of protection	IP20 IEC 60529 IP20 EN 60529
pollution degree	3 EN 60947-2 3 IEC 60947-2
overvoltage category	IV
tropicalisation	2 IEC 60068-1
relative humidity	95 % 55 °C
operating altitude	0...2000 m
ambient air temperature for operation	-35…70 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
